Wieland Modular Connector System Male Frame for 3 Modules
Wieland Modular Connector System Male Frame for 3 Modules
SKU:IND-541032
Durable Wieland male frame for 3 modules, gray color, pin insert design, wide temperature range, 3 positions, earthing connection, V0 insulation material.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland Modular Connector System Male Frame for 3 Modules
$29.99
Quantity: 1
Claim Your Seller Account
Wieland Modular Connector System Male Frame for 3 Modules
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

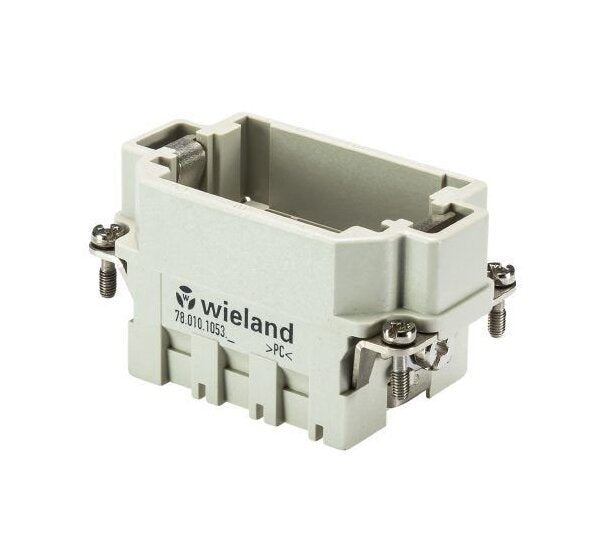

The Wieland Modular Connector System Male Frame for 3 Modules is a versatile solution for industrial multipole connectors. With a durable plastic construction, this gray connector frame features a pin insert design and is suitable for a wide temperature range from -40 ºC to 120 ºC. It offers 3 positions with earthing connection and V0 rated insulation material, meeting stringent industry standards for safety and reliability. The integrated ground conductor screws ensure secure connections, making it ideal for industrial applications requiring high performance and durability.
Product Specifications
Classification Eclass 81 Classification
27440210
Classification Etim 30 Classification
EC002310
Classification Etim 40 Classification
EC002310
Classification Etim 50 Classification
EC002310
Classification Etim 60 Classification
EC002310
Classification Etim 70 Classification
EC002310
General Brands
Wieland
General Color
Gray
General Construction
10
General Earthing Connection
Yes
General Ground Conductor Screws Slot
Z2/1.2 N·m
General Inflammability Class Of Insulation Material According Wi
V0
General Material
Plastic
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Pin Insert
General Mounting Screws
Z1/0.5 N·m
General Number Of Positions
3
