Wieland MOVE 12VDC-1W-16A Relay Module
Wieland MOVE 12VDC-1W-16A Relay Module
SKU:COU-4a7e2d
High-quality Wieland coupling relay with screw connection, mono stable function drive, and IP20 protection. Compliant with RoHS & REACH-SVHC.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland MOVE 12VDC-1W-16A Relay Module
$29.99
Quantity: 1
Claim Your Seller Account
Wieland MOVE 12VDC-1W-16A Relay Module
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

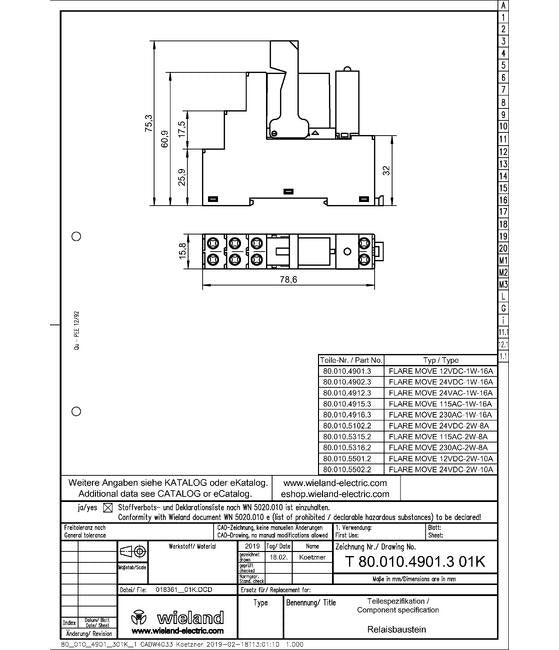

The Wieland MOVE 12VDC-1W-16A Relay Module is a high-quality coupling relay featuring a screw connection, mono stable function drive, and one change-over contact. With dimensions of 76mm x 15.8mm x 78.6mm, this relay module is complete with a socket and offers IP20 protection. Compliant with RoHS and REACH-SVHC standards, this relay module is designed for reliability and efficiency in electrical applications.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437
Dimensions Depth
76 mm
Dimensions Height
78.6 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 12VDC-1W-16A
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-8(b)
