Wieland Multi-Pole Industrial Connector Housing - 24-Pole M32 IP54
Wieland Multi-Pole Industrial Connector Housing - 24-Pole M32 IP54
SKU:IND-812608
Durable Wieland Multi-Pole Industrial Connector Housing with IP54 protection and 24-pole construction. RoHS compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland Multi-Pole Industrial Connector Housing - 24-Pole M32 IP54
$129.99
Quantity: 1
Claim Your Seller Account
Wieland Multi-Pole Industrial Connector Housing - 24-Pole M32 IP54
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

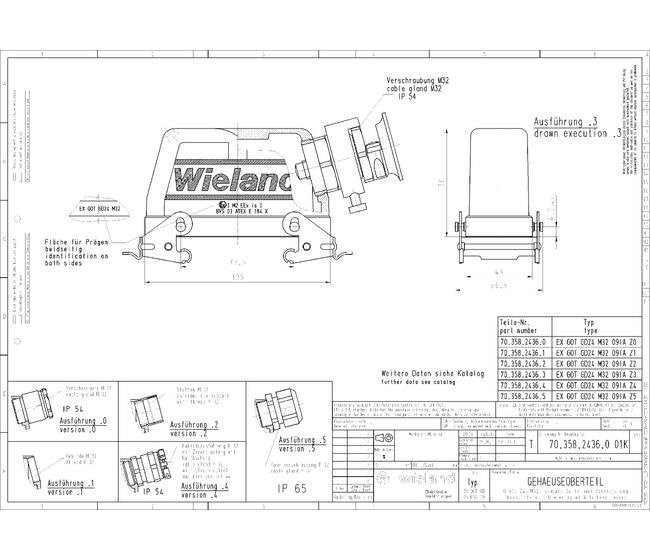

The Wieland HOOD EX GOT GD24 M32 09IA Z4 Multi-Pole Heavy-Duty Industrial Connector Housing is expertly designed for industrial applications. Constructed from die-cast zinc with a durable blue finish, this housing features double locking levers for secure connections. The cable gland with bend protection and strain relief ensures reliable performance even in harsh environments. With an IP54 rating and explosion-tested 24-pole construction, this housing ensures safety and efficiency in industrial settings. RoHS compliant with exceptions, this connector housing is a reliable choice for demanding industrial requirements.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Blue
General Degree Of Protection Ip
IP54
General Explosion Tested Version
Yes
General Housing Material
Die-cast zinc
General Maximum Operating Temperature Range
60 ºC
General Minimum Operating Temperature Range
-20 ºC
General Model
HOOD EX GOT GD24 M32 09IA Z4
Model Cable Entry
Above
Model Construction
24
Model Emc Version
No
Model Height
70 mm
Model Length
120 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
32
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
57 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
24
Specifications Profile
Low
