Wieland Multi-Tier Terminal Block - V0 Rated, 32A, 400V
Wieland Multi-Tier Terminal Block - V0 Rated, 32A, 400V
SKU:DIN-dac305
High-quality Wieland Multi-Tier Terminal Block for secure and reliable electrical connections. Supports 32A, 400V, V0 rated insulation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland Multi-Tier Terminal Block - V0 Rated, 32A, 400V
$24.99
Quantity: 1
Claim Your Seller Account
Wieland Multi-Tier Terminal Block - V0 Rated, 32A, 400V
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

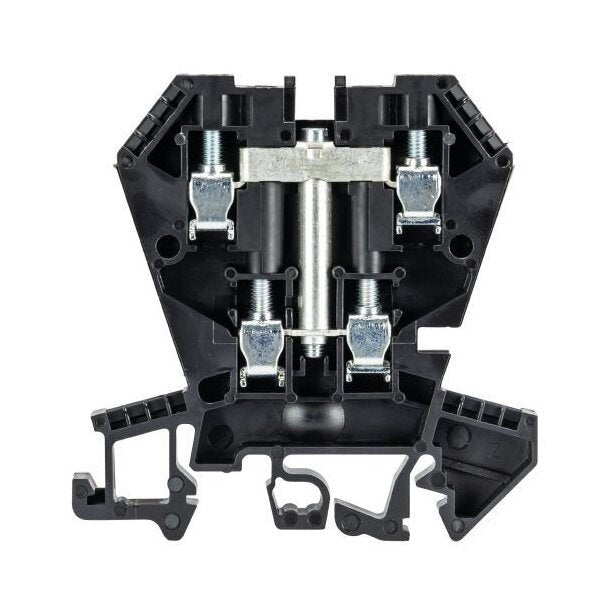

The Wieland WK 4E/UVB SW/V0 Multi-Tier Terminal is a top-quality DIN rail terminal block suitable for institutional and consumer applications. This terminal features a nominal cross-section of 4 mm², with a black PA666 insulating housing. It offers 2 levels with 2 clamp positions per level, ensuring secure connections. With a width of 6mm and an inflammability rating of V0 per UL94 standards, this terminal guarantees safety and reliability in electrical installations. Meeting rated current of 32A and maximum rated voltage of 400V, it provides optimal performance and durability. The screw connections accommodate solid and fine-stranded wires, making installations convenient and efficient.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Color
Black
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
61.6 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
