Wieland Multi-Tier Terminal DIN Rail Block - WKFN 2.5 E3/35
Wieland Multi-Tier Terminal DIN Rail Block - WKFN 2.5 E3/35
SKU:DIN-acae51
Reliable Wieland Multi-Tier Terminal for secure electrical connections in institutional setups.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland Multi-Tier Terminal DIN Rail Block - WKFN 2.5 E3/35
$24.99
Quantity: 1
Claim Your Seller Account
Wieland Multi-Tier Terminal DIN Rail Block - WKFN 2.5 E3/35
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

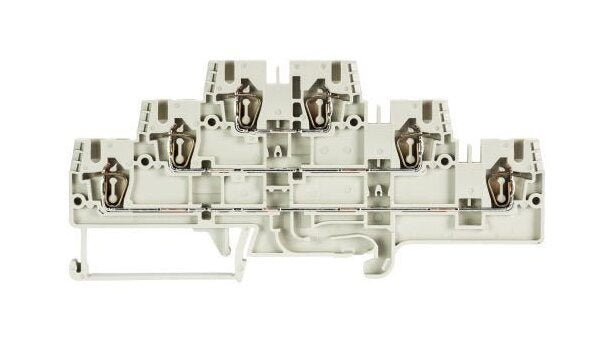

The Wieland WKFN 2.5 E3/35 Multi-Tier Terminal is a high-quality duo feed-through terminal designed for reliability in electrical installations. With a 2.5 mm² nominal cross-section and 3 levels of 2 clamp positions each, this terminal offers secure connections. It features a compact 5mm width, gray color, and PA666 insulating housing for robustness. Compliant with UL94 V0 flammability standards, this terminal has a rated current of 20A and a maximum voltage of 500V, making it ideal for industrial settings.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
3
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant

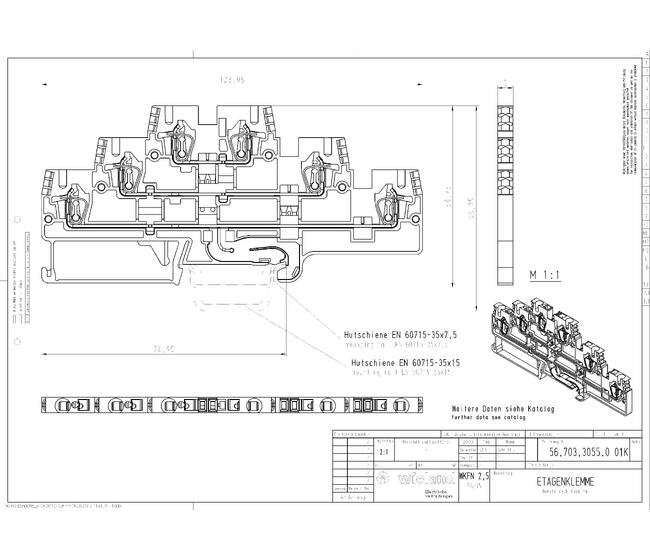

Specifications Mounting Size
35 x 7.5 mm
Technical Data Closing Plate Required
Yes
Technical Data Length
123.1 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
24 A
Technical Data Ulcsa Current Factory Wiring
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
