Wieland P1 24-10 Basic Line Power Supply
Wieland P1 24-10 Basic Line Power Supply
SKU:POW-146076
Get reliable power with the Wieland P1 24-10 Basic Line Supply - 24V DC, 10A, short-circuit protection, and versatile input voltage range.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland P1 24-10 Basic Line Power Supply
$129.99
Quantity: 1
Claim Your Seller Account
Wieland P1 24-10 Basic Line Power Supply
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland P1 24-10 Basic Line Power Supply is a reliable and efficient solution for powering various electronic devices. With a nominal voltage of 24V DC and a continuous current of 10A, this power supply offers a setting range of 22.5-28.5V DC. It features sustained short-circuit protection and has an input voltage range of 115V AC / 230V AC (auto-select) and 210-370V DC, making it versatile for different applications. The compact design, screw connection type, and metal housing material ensure durability and ease of installation. With compliance to RoHS and REACH-SVHC standards, this power supply is ideal for both individual and institutional buyers seeking reliable performance and safety.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

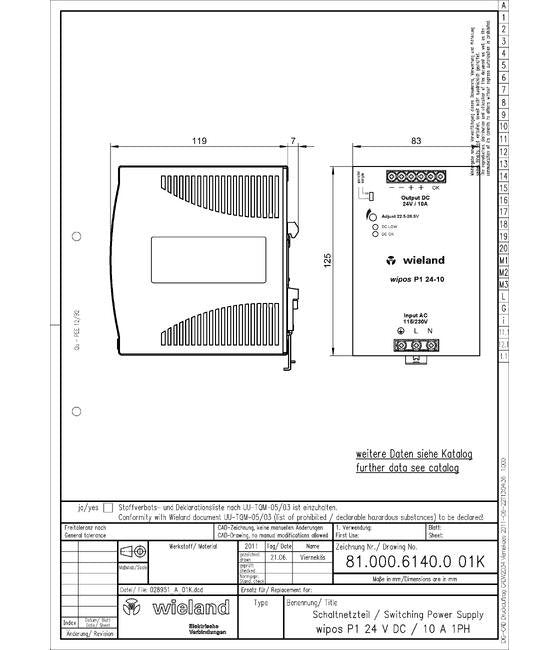

Dimensions Depth
123.6 mm
Dimensions Height
123.6 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
1.3k g
Dimensions Width
83 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
10 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
24 V
General Housing Material
Metal
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P1 24-10
General Modular Version
No
General Nominal Alternating Current Ac Input Voltage Auto
115 V | 230 V
General Nominal Direct Current Dc Input Voltage
210 to 375 V
General Number Of Phases
Single Phase Power Supply
General Power
285 W
Input Maximum Alternating Current Ac Input Voltage
230 V
Input Maximum Direct Current Dc Input Voltage
375 V
Input Minimum Alternating Current Ac Input Voltage
115 V
Input Minimum Direct Current Dc Input Voltage
210 V
Input Power Consumption
< 328 V·A
Output Maximum Output Voltage
28.5 V
Output Minimum Output Voltage
22.5 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
285 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
