Wieland P1 48-5 Basic Line Power Supply Unit
Wieland P1 48-5 Basic Line Power Supply Unit
SKU:POW-5fe3d9
Reliable Wieland P1 48-5 Basic Line Power Supply Unit for stable 48V DC output, ideal for diverse applications, compliance with RoHS & REACH-SVHC standards.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Wieland P1 48-5 Basic Line Power Supply Unit
$169.99
Quantity: 1
Claim Your Seller Account
Wieland P1 48-5 Basic Line Power Supply Unit
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

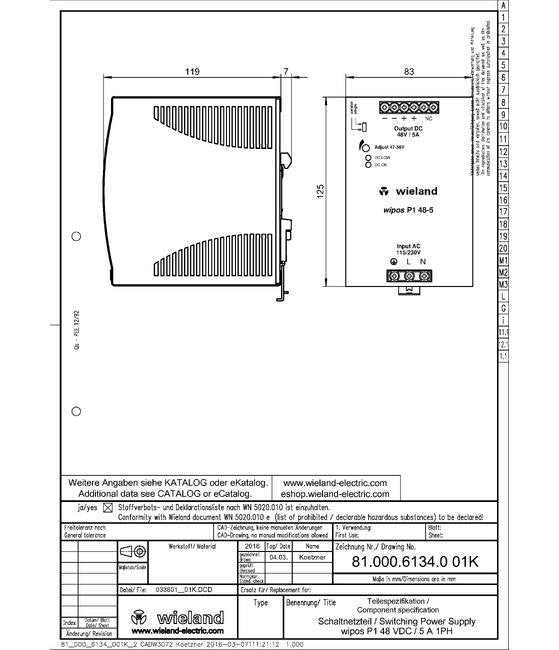

The Wieland P1 48-5 Basic Line Power Supply Unit offers a reliable solution for institutions and consumers alike. With a nominal voltage of 48V DC and continuous current of 5A, this switched-mode power supply delivers consistent performance. It features sustained short-circuit protection, input voltage range of 115V AC to 230V AC, and 210-370V DC. The compact design with dimensions of 83mm x 123.6mm x 123.6mm makes it versatile for various applications. With compliance to RoHS and REACH-SVHC standards, this power supply ensures not just efficiency but also environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540
Dimensions Depth
123.6 mm
Dimensions Height
123.6 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
1.3k g
Dimensions Width
83 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
5 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
48 V
General Housing Material
Metal
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P1 48-5
General Modular Version
Yes
General Nominal Alternating Current Ac Input Voltage Auto
115 V | 230 V
General Nominal Direct Current Dc Input Voltage
210 to 375 V
General Number Of Phases
Single Phase Power Supply
General Other Mounting Type
No
General Parallel Service Possible
Yes
General Power
480 W
Input Maximum Input Voltage
264 V
Input Minimum Input Voltage
90 V
Input Primary Voltage Range
90 V
Output Maximum Output Voltage
56 V
Output Minimum Output Voltage
47 V
Output Output Voltage
48 V
Output Output Voltage Stabilized
Yes
Output Power Output
480 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
