Wieland P3 24-10 Basic Line Power Supply
Wieland P3 24-10 Basic Line Power Supply
SKU:POW-c15d4b
Reliable 24V DC/10A switch-mode power supply with wide input voltage range and CE-Norm compliance for industrial applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland P3 24-10 Basic Line Power Supply
$189.99
Quantity: 1
Claim Your Seller Account
Wieland P3 24-10 Basic Line Power Supply
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland P3 24-10 Basic Line Power Supply is a reliable switch-mode power supply designed for industrial applications. With a nominal voltage of 24V DC and a continuous current of 10A, this power supply offers sustained short-circuit protection and a wide input voltage range. It meets various industry standards including CE-Norm, approval cULus, and RoHS compliance. Ideal for 3-phase power supply needs, it ensures stable and efficient power delivery while maintaining high levels of safety and performance.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

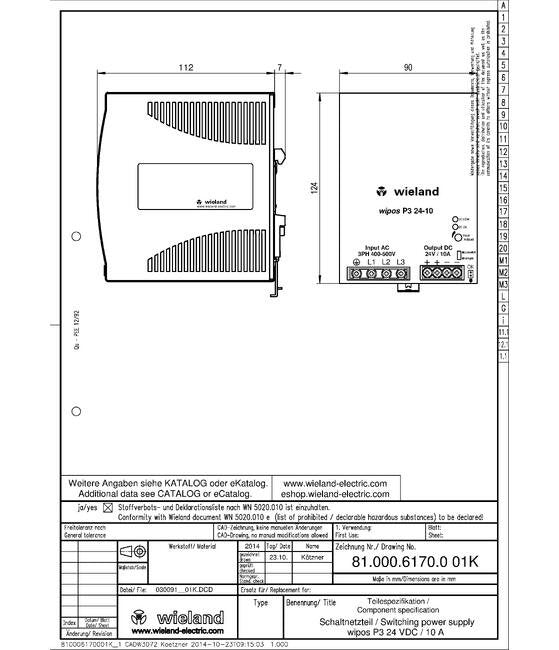

Dimensions Depth
119 mm
Dimensions Height
124 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 m mm
Dimensions Weight
1.1k g
Dimensions Width
90 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
10 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
24 V
General Housing Material
Metal
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P3 24-10
General Modular Version
No
General Nominal Alternating Current Ac Input Voltage
340 to 575 V
General Nominal Direct Current Dc Input Voltage
480 to 820 V
General Number Of Phases
3 Phase Power Supply
General Power
240 W
Input Maximum Alternating Current Ac Input Voltage
575 V
Input Maximum Direct Current Dc Input Voltage
820 V
Input Minimum Alternating Current Ac Input Voltage
340 V
Input Minimum Direct Current Dc Input Voltage
480 V
Input Power Consumption
< 266 V·A
Output Maximum Output Voltage
28.5 V
Output Minimum Output Voltage
22.5 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
240 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
