Wieland P3 24-20 Basic Line Power Supply
Wieland P3 24-20 Basic Line Power Supply
SKU:POW-612d14
Reliable 24V DC/20A switch-mode power supply with short-circuit protection, wide input voltage range. Ideal for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wieland P3 24-20 Basic Line Power Supply
$299.99
Quantity: 1
Claim Your Seller Account
Wieland P3 24-20 Basic Line Power Supply
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

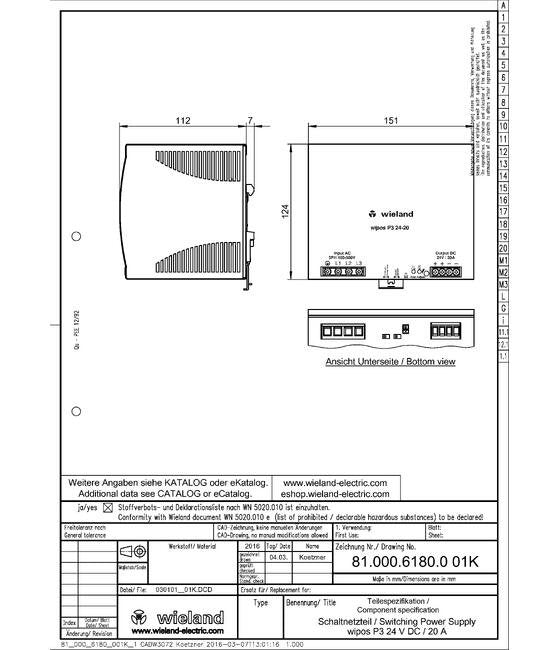

The Wieland P3 24-20 Basic Line Power Supply is a reliable and efficient switch-mode power supply designed for industrial applications. With a nominal voltage of 24V DC and a continuous current of 20A, this power supply ensures stable and secure operation. It features sustained short-circuit protection and a wide input voltage range of 340-575V AC and 480-820V DC, making it suitable for diverse power supply needs. The compact dimensions of 150 x 123.6 x 118.2mm, along with its robust metal housing, make installation easy and durable. This power supply meets stringent industry standards for performance and safety, providing peace of mind for both consumers and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540
Dimensions Depth
119 mm
Dimensions Height
124 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
1.75k g
Dimensions Width
151 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
20 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
24 V
General Housing Material
Metal
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-30 ºC
General Minimum Operating Temperature
-30 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P3 24-20
General Modular Version
No
General Nominal Alternating Current Ac Input Voltage
340 to 575 V
General Nominal Direct Current Dc Input Voltage
480 to 820 V
General Number Of Phases
3 Phase Power Supply
General Power
480 W
Input Maximum Alternating Current Ac Input Voltage
575 V
Input Maximum Direct Current Dc Input Voltage
820 V
Input Minimum Alternating Current Ac Input Voltage
340 V
Input Minimum Direct Current Dc Input Voltage
480 V
Input Power Consumption
< 533 V·A
Output Maximum Output Voltage
28.5 V
Output Minimum Output Voltage
22.5 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
480 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
