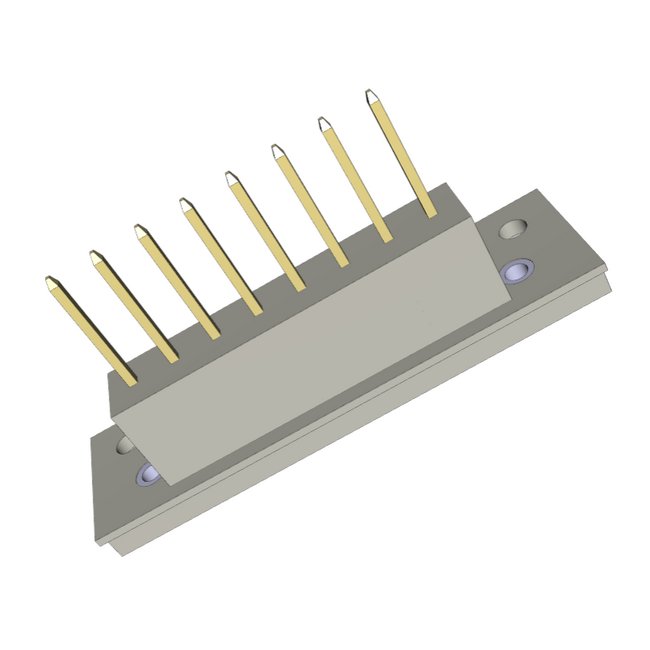

Wieland Panel Header 8-Pole Connector
Wieland Panel Header 8-Pole Connector
SKU:PRI-a5dfa3
Secure and efficient Wieland Panel Header 8-Pole Connector for PCB needs, RoHS compliant with exceptions.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland Panel Header 8-Pole Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland Panel Header 8-Pole Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Panel Header 8-Pole Connector is a durable and reliable solution for your Printed Circuit Board (PCB) needs. With a modular spacing of 5.08mm, soldering connection type, and a rated current of 6.5A, this header ensures secure and efficient connections. It meets RoHS conformity standards, although with exceptions, ensuring environmental compliance. Ideal for industrial and government applications requiring a high level of performance and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440402
Classification Etim 40 Classification
EC002637
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
General Brands
Wieland
General Connection Type
Soldering Connection
General Fastening
Flange
General Marking
No
General Mating Direction Towards Circuit Board
None
General Model
PANEL HEADER 8213 S/8 DFWW M
General Modular Spacing
5.08 mm
General Number Of Levels
1
General Number Of Poles
8
General Packaging
Carton
General Soldering Process
None
Other Color
Gray
Other Contact Base Material
Copper Silicone (CuSn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
17.1 mm
Other Height
17.5 mm
Other Length
60.96 mm
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
400 V
Technical Data Overvoltage Category Iii
250 V
Technical Data Rated Current
6.5 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Current Canadian Standards Association Csa
6.5 A
Technical Data Ulcsa Factory Wiring Current
6.5 A
Technical Data Ulcsa Field Wiring Current
6.5 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
