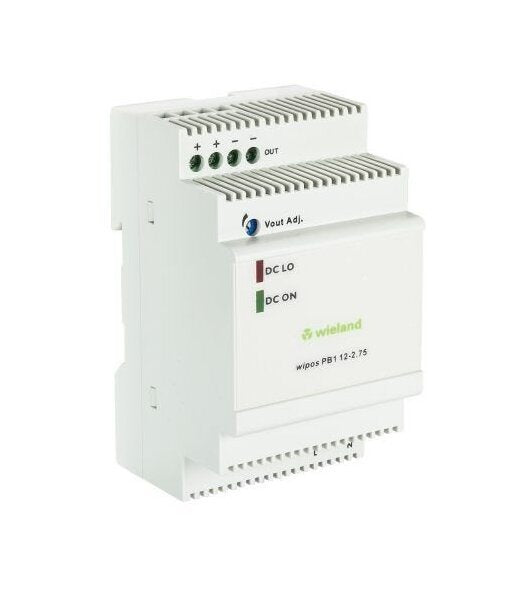

The Wieland PB1 12-2.75 Switch-Mode Power Supply is a reliable solution for precise power needs in various applications. With a nominal voltage of 12V DC and output of 2.75A, this power supply offers sustained short-circuit protection and operates within an input voltage range of 90-264V AC. Designed for single-phase use, this DIN rail mounted device ensures easy installation in 3 mod spaces. With a durable plastic housing, wide temperature range, and multiple certifications including RoHS and REACH-SVHC, this power supply is efficient, safe, and compliant with industry standards.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

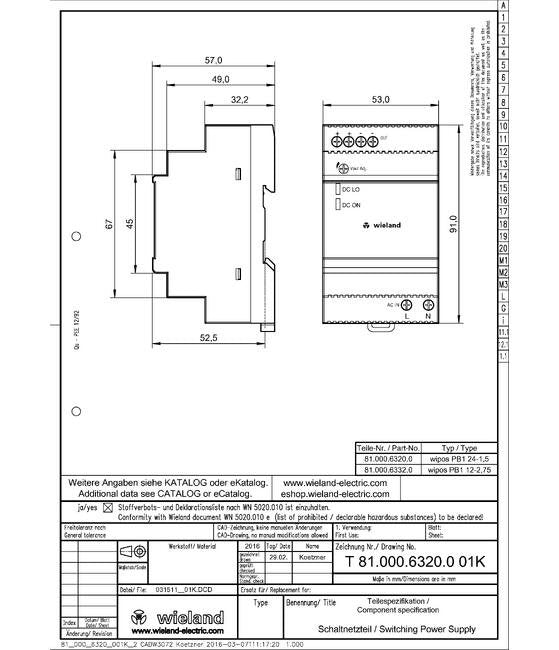

Dimensions Depth
56.5 mm
Dimensions Height
91 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
190 g
Dimensions Width
53 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Housing Material
Plastic
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
SWITCHED-MODE POWER SUPPLY WIPOS PB1 12-2.75
General Modular Version
Yes
General Number Of Phases
Single Phase Power Supply
General Other Mounting Type
No
General Parallel Service Possible
No
General Rail Mounting Possible
Yes
General Wall Mounting Type
No
Input Input Fuse
T2A/250V (Internal)
Input Input Protection
Varistor (Voltage-Sensitive Resistor)
Input Maximum Input Voltage
264 V
Input Maximum Rated Frequency
63 Hz
Input Minimum Input Voltage
90 V
Input Primary Voltage Range
90 V
Output Maximum Output Voltage
14 V
Output Minimum Output Voltage
12 V
Output Output Voltage
12 V
Output Output Voltage Stabilized
Yes
Output Power Output
33 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
