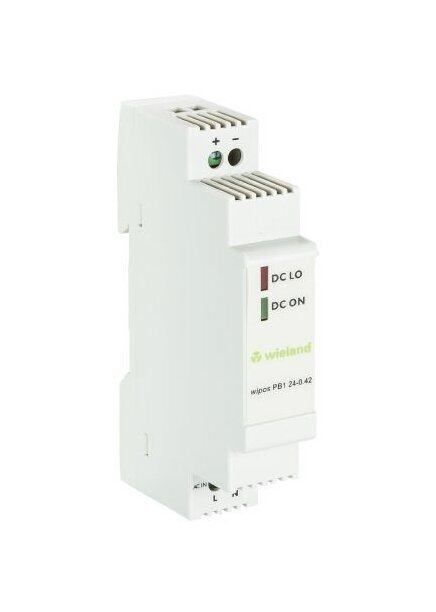

Wieland PB1 24-0.42 Switch-Mode Power Supply
Wieland PB1 24-0.42 Switch-Mode Power Supply
SKU:POW-3f9156
Reliable 24V DC / 0.42A switched-mode power supply with short-circuit protection, DIN rail mount, and wide temperature range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland PB1 24-0.42 Switch-Mode Power Supply
$49.99
Quantity: 1
Claim Your Seller Account
Wieland PB1 24-0.42 Switch-Mode Power Supply
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland PB1 24-0.42 Switch-Mode Power Supply is a reliable solution for industrial power needs. With a nominal voltage of 24 V DC / 0.42A, this power supply offers sustained short-circuit protection and an input voltage range of 90-264 V AC / 120-375 V DC. It features a single-phase design, DIN rail mounting capability, and a compact housing made of durable plastic. This power supply is designed to operate in extreme temperatures ranging from -40°C to 71°C, ensuring consistent performance in challenging environments. It meets compliance standards such as RoHS and REACH-SVHC, making it a trusted choice for various applications.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

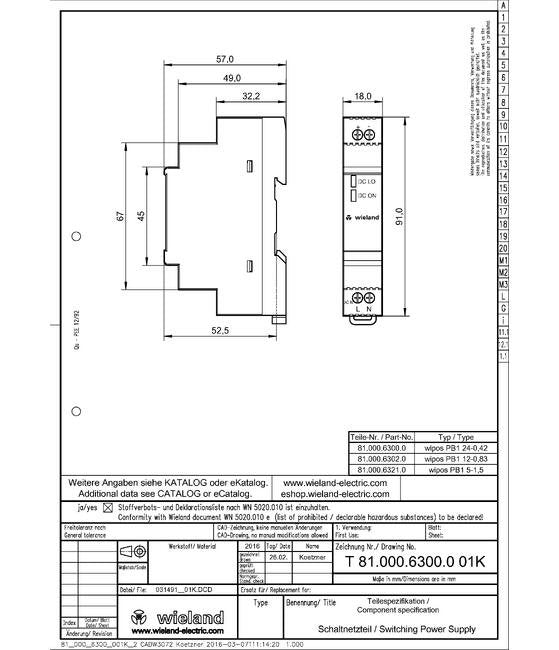

Dimensions Depth
56.5 mm
Dimensions Height
91 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
65 g
Dimensions Width
18 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Housing Material
Plastic
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
SWITCHED-MODE POWER SUPPLY WIPOS PB1 24-0.42
General Modular Version
Yes
General Number Of Phases
Single Phase Power Supply
General Other Mounting Type
No
General Parallel Service Possible
No
General Rail Mounting Possible
Yes
General Wall Mounting Type
No
Input Input Fuse
T1A/250 V AC (Internal)
Input Input Protection
Varistor (Voltage-Sensitive Resistor)
Input Maximum Alternating Current Ac Input Voltage
264 V
Input Maximum Direct Current Dc Input Voltage
375 V
Input Minimum Alternating Current Ac Input Voltage
90 V
Input Minimum Direct Current Dc Input Voltage
120 V
Output Maximum Output Voltage
28 V
Output Minimum Output Voltage
24 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
10 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
