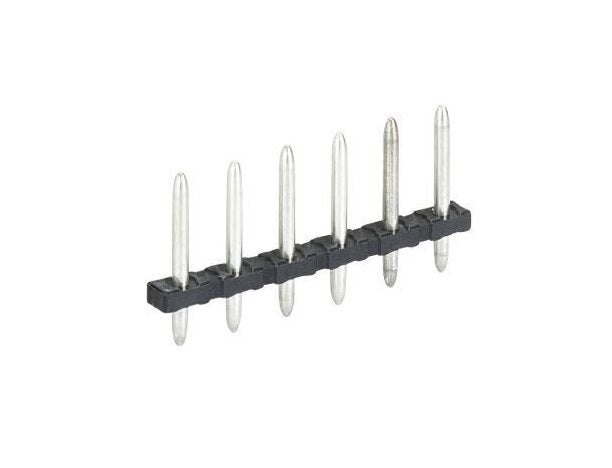

Wieland PCB Pin Header 8142/2, 5mm Modular Spacing
Wieland PCB Pin Header 8142/2, 5mm Modular Spacing
SKU:PRI-3de77d
Wieland PCB Pin Header 8142/2 with 8A rated current, 1000V overvoltage, and RoHS compliance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland PCB Pin Header 8142/2, 5mm Modular Spacing
$12.99
Quantity: 1
Claim Your Seller Account
Wieland PCB Pin Header 8142/2, 5mm Modular Spacing
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland PCB Pin Header 8142/2 is designed for seamless integration with pluggable terminal block series 8142, offering reliable connectivity for various applications. With a rated current of 8A and overvoltage categories ranging up to 1000V, this pin header ensures robust performance and enhanced safety. Its thermoplastic insulation, copper zinc contact base material, and silicone contact surface material guarantee durability and efficient signal transmission. Compliant with RoHS and REACH-SVHC standards, this pin header meets stringent environmental regulations, making it a sustainable choice for your projects.
Product Specifications
Classification Eclass 81 Classification
27440402
Classification Etim 40 Classification
EC002637
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
General Brands
Wieland
General Fastening
None
General Marking
No
General Mating Direction Towards Circuit Board
90 º
General Model
PCB PIN HEADER 8142/2
General Modular Spacing
5 mm
General Number Of Levels
1
General Number Of Poles
2
General Packaging
Carton
General Soldering Process
Wave Soldering
Other Color
Black
Other Contact Base Material
Copper Zinc (CuZn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
2.8 mm
Other Height
14.5 mm
Other Length
10 mm
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
250 V
Technical Data Overvoltage Category Iii
200 V
Technical Data Rated Current
8 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Current Canadian Standards Association Csa
15 A
Technical Data Ulcsa Factory Wiring Current
15 A
Technical Data Ulcsa Field Wiring Current
15 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
