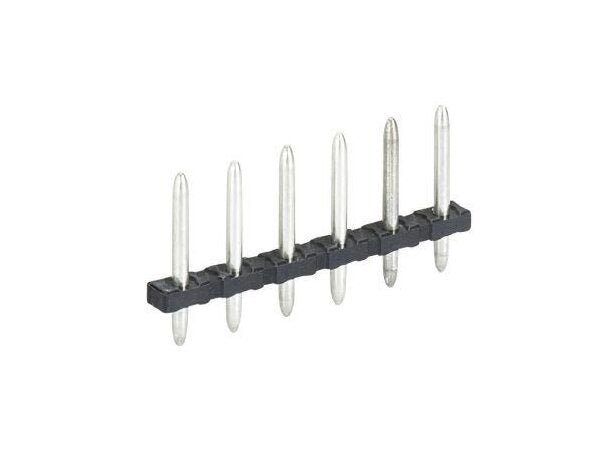

Wieland PCB Pin Header 8142/3, 5mm Modular Spacing
Wieland PCB Pin Header 8142/3, 5mm Modular Spacing
SKU:PRI-2beac4
High-performance Wieland PCB Pin Header 8142/3, 5mm spacing, 8A current, 4kV impulse voltage, RoHS compliant
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland PCB Pin Header 8142/3, 5mm Modular Spacing
$12.99
Quantity: 1
Claim Your Seller Account
Wieland PCB Pin Header 8142/3, 5mm Modular Spacing
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland PCB Pin Header 8142/3 is a high-quality, 3-pole component designed for pluggable terminal block series 8142. With a modular spacing of 5mm, it offers excellent compatibility and ease of installation. This pin header is rated for high performance with a current capacity of 8A and overvoltage protection up to 4kV. Constructed with Thermoplastic insulation and Copper Zinc contacts, it meets RoHS and REACH-SVHC standards, ensuring environmental compliance.
Product Specifications
Classification Eclass 81 Classification
27440402
Classification Etim 40 Classification
EC002637
Classification Etim 50 Classification
EC002637
Classification Etim 60 Classification
EC002637
Classification Etim 70 Classification
EC002637
General Brands
Wieland
General Fastening
None
General Marking
No
General Mating Direction Towards Circuit Board
90 º
General Model
PCB PIN HEADER 8142/3
General Modular Spacing
5 mm
General Number Of Levels
1
General Number Of Poles
3
General Packaging
Carton
General Soldering Process
Wave Soldering
Other Color
Black
Other Contact Base Material
Copper Zinc (CuZn)
Other Contact Surface Material
Silicone (Sn)
Other Depth
2.8 mm
Other Height
14.5 mm
Other Length
15 mm
Other Type Of Insulation Material
Thermoplastic
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Overvoltage Category I
1000 V
Technical Data Overvoltage Category Ii
250 V
Technical Data Overvoltage Category Iii
200 V
Technical Data Rated Current
8 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Ulcsa Current Canadian Standards Association Csa
15 A
Technical Data Ulcsa Factory Wiring Current
15 A
Technical Data Ulcsa Field Wiring Current
15 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
