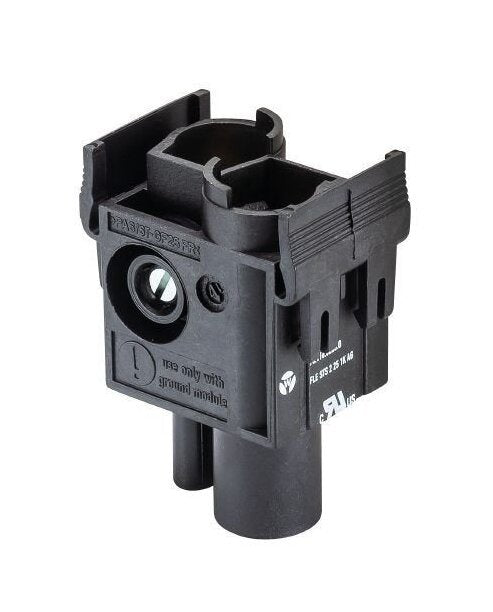

Wieland Pin High Current Industrial Connector Insert - 2 Pole Female Insert
Wieland Pin High Current Industrial Connector Insert - 2 Pole Female Insert
SKU:IND-a5d06d
Experience high-performance connectivity with the Wieland Pin High Current Industrial Connector Insert - 2 Pole Female Insert.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland Pin High Current Industrial Connector Insert - 2 Pole Female Insert
$49.99
Quantity: 1
Claim Your Seller Account
Wieland Pin High Current Industrial Connector Insert - 2 Pole Female Insert
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Pin High Current Industrial Connector Insert is a premium modular connector system designed for industrial applications. This 2-pole female insert boasts a maximum rated voltage of 600V and a rated current of 82A, ensuring reliable power connections. With a robust screw connection, copper alloy contacts with silver-plating, and V0 inflammability class insulation material, this connector insert offers exceptional durability and performance. Additionally, it meets RoHS and REACH-SVHC conformity standards, providing a reliable and environmentally conscious solution for high-current connectivity needs.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
25 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
10 mm²
Connection Data Number Of Poles
2
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
2
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠2 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
15 mm
General Brands
Wieland
General Color
Black
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
100
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Pin Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Screws Head Design Clamping Screws
M6/2.5 N·m Slot
Technical Data Din En 61984 Maximum Rated Voltage Faceground
1000 V
Technical Data Din En 61984 Nominal Current
82 A
Technical Data Din En 61984 Nominal Voltage
1000 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Conductor Flexible Wire Cross Section
8-4 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
25 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
10 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
82 A
Technical Data Ulcsa Rated Current According Underwriters Labora
82 A
