Wieland Podis Con LSHF 5G16 Flat Cables - Class B2ca-s1a-d1-a1, 16mm²
Wieland Podis Con LSHF 5G16 Flat Cables - Class B2ca-s1a-d1-a1, 16mm²
SKU:POD-0effc8
Wieland Podis Con LSHF 5G16 Flat Cables: Halogen-free, flame retardant, 1 kV, Class B2ca-s1a-d1-a1 certified
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland Podis Con LSHF 5G16 Flat Cables - Class B2ca-s1a-d1-a1, 16mm²
$29.99
Quantity: 1
Claim Your Seller Account
Wieland Podis Con LSHF 5G16 Flat Cables - Class B2ca-s1a-d1-a1, 16mm²
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

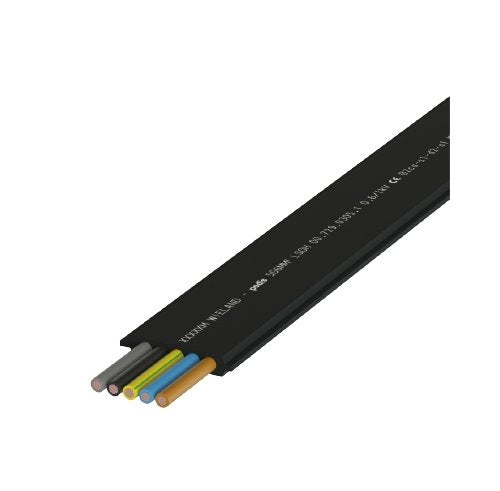

The Wieland Podis Con LSHF 5G16 Flat Cables are designed for optimum performance in fixed installations with a nominal voltage of 1 kV. These halogen-free, flame retardant cables feature a polyolefin core insulation and outer sheath, ensuring durability and safety. With a conductor category of Class 5 = Flexible and a maximum installation temperature of 60°C, these cables provide reliable ampacity up to 63 A. Ideal for institutional applications that require CPR class B2ca-s1a-d1-a1 certification, these cables offer unmatched quality and compliance with REACH-SVHC and RoHS standards.
Product Specifications
Classification Eclass 81 Classification
27062002
Classification Etim 40 Classification
EC000825
Classification Etim 50 Classification
EC000825
Classification Etim 60 Classification
EC000825
Classification Etim 70 Classification
EC003250
Classification Etim 80 Classification
EC003250
Classification Etim 90 Classification
EC003250
General Approximate Cable Height
11.5 mm
General Approximate Cable Width
48 mm
General Brands
Wieland
General Conductor Category
Class 5 = Flexible
General Core Identification
Color
General Core Insulation Material
Polyolefin
General Maximum Installation Temperature
60 ºC
General Number Of Cores
5
General Outer Sheath Color
Black
General Outer Sheath Material
Polyolefin
General Screen
No
General Shock Resistance
IK10
General Static Bending Radius
55 mm
General Yellowgreen Conductor
Yes
Product Compliance Standards
REACH-SVHC Compliant | RoHS Compliant
Technical Data Nominal Conductor Cross Section
16 mm²
Technical Data Nominal Voltage Un
1 kV
