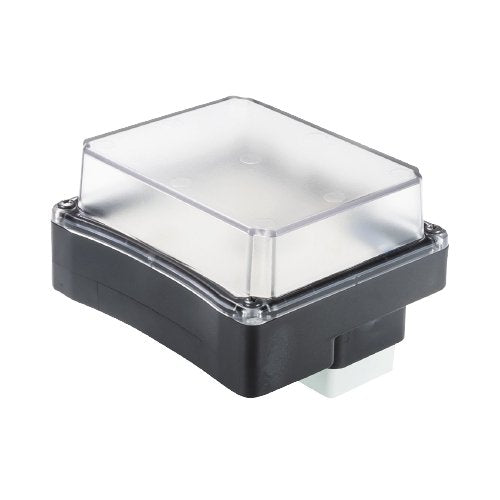

The Wieland Podis LED Lamp is a high-efficiency, energy-saving luminaire designed for harsh industrial environments like wind turbines. With a typical brightness of 360 lumens and a color temperature of 6500K, this LED lamp operates on 24V DC with a power rating of 5W. It features integrated protection against reverse polarity, overload, and shortages, along with IP65 encapsulation for durability. Compliant with EN 60598-2-22 standards, DIN 60598-1, cURus certification, and RoHS guidelines, this lamp ensures reliable performance in challenging conditions.
Product Specifications
Classification Eclass 81 Classification
27110640
Classification Etim 50 Classification
EC001959
Classification Etim 60 Classification
EC001959
Classification Etim 70 Classification
EC001959
Classification Etim 80 Classification
EC001959
Classification Etim 90 Classification
EC001959
Dimensions Height
136 mm
Dimensions Length
124 mm
Dimensions Width
104 mm
General Brands
Wieland
General Circuit
Other
General Color Housing
Black
General Degree Of Protection Ip
IP65
General Housing Material
Plastic
General Lamp
Light Emitting Diode (LED)
General Lamp Holder
Other
General Mounting Method
Pluggable
General Power Supply Connection
Plug Connection Podis CON
General Wiring System
Continuous Circuit | Standby Circuit
Product Compliance Certificationapproval
Det Norske Veritas (Norway) and Germanischer Lloyd (Germany) | Underwriters Laboratories Recognized for Canada and United States (cRUus)
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Direct Current Dc Voltage
24 V
Technical Data Emergency Lighting Characterization
Z 1 ***DE
Technical Data Fuse Current
0.5 A
Technical Data Fuse Voltage
60 V (Resetting)
Technical Data Lamp Power
4.9 W
Technical Data Light Color
5700 K
Technical Data Maximum Ambient Operating Temperature
70 ºC
Technical Data Maximum Nominal Voltage
30 V
Technical Data Maximum Storagetransport Temperature
70 ºC
Technical Data Minimum Ambient Operating Temperature
-40 ºC
Technical Data Minimum Nominal Voltage
15 V
Technical Data Minimum Storagetransport Temperature
-40 ºC
Technical Data Mode
Continuous Operation
Technical Data Reverse Polarity Protection
Yes
Technical Data Standards
DIN EN60598-1 | DIN EN60598-22
