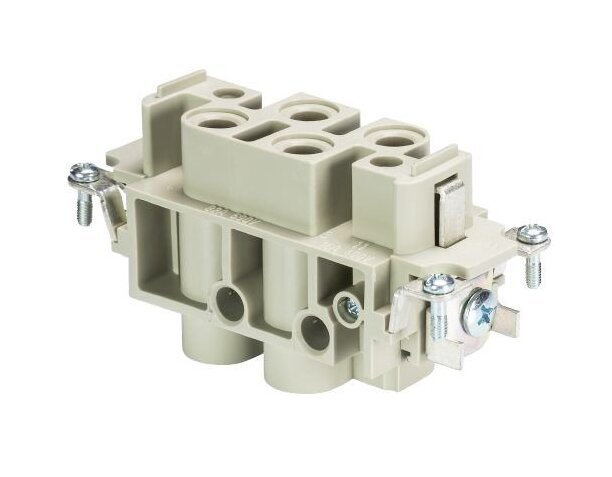

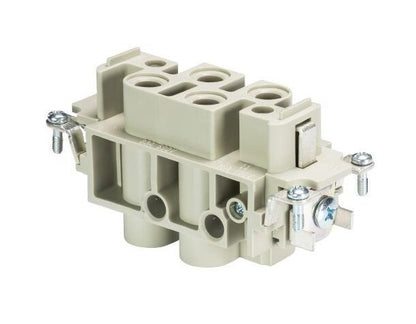

Wieland POW BUS 4/2 FA DB AG Industrial Connector Insert
Wieland POW BUS 4/2 FA DB AG Industrial Connector Insert
SKU:IND-4412bf
Reliable Wieland industrial connector with 82A rated current, silver-plated copper contacts, and RoHS compliance.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland POW BUS 4/2 FA DB AG Industrial Connector Insert
$69.99
Quantity: 1
Claim Your Seller Account
Wieland POW BUS 4/2 FA DB AG Industrial Connector Insert
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland POW BUS 4/2 FA DB AG Industrial Connector Insert is a high-performance solution for industrial applications. With a maximum operating temperature of 120°C, a protective contact feature, and silver-plated copper alloy contacts, this connector insert ensures reliable and secure connections. Meeting UL and CSA standards with a rated current of 82A, this insert offers durability with a maximum flexible wire conductor cross-section of 16 mm². RoHS compliant and exempted, it adheres to industry regulations for sustainable manufacturing practices.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
16 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
1 mm²
Connection Data Number Of Poles
4
Connection Data Number Of Pole For Rated Current 2
2
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
15 mm
General Alternative Size
16
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT POW BUS 4/2 FA DB AG
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage 2
400 V
Technical Data Din En 61984 Maximum Rated Voltage Faceground
690 V
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
