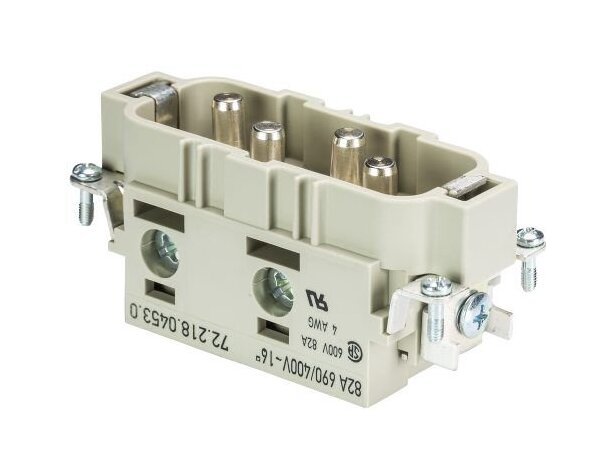

The Wieland POW STS 4 16 64 AG Industrial Connector Insert is designed for industrial applications requiring a reliable connection. With a rated current of 82 A at 600 V, this male insert features a screw connection with copper alloy contacts and silver-plated surfaces for optimal conductivity. It is HB-rated for inflammability and operates within a wide temperature range from -40ºC to 120ºC. This industrial connector insert is RoHS compliant and meets stringent industry standards for performance and durability.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
16 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
6 mm²
Connection Data Number Of Poles
4
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
4
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠0.6 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT POW STS 4 16 64 AG
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H2/2.5-3.0 N·m
Screws Head Design Ground Conductor Screws
M5/2.0-2.5 Slot N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
400 V
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
