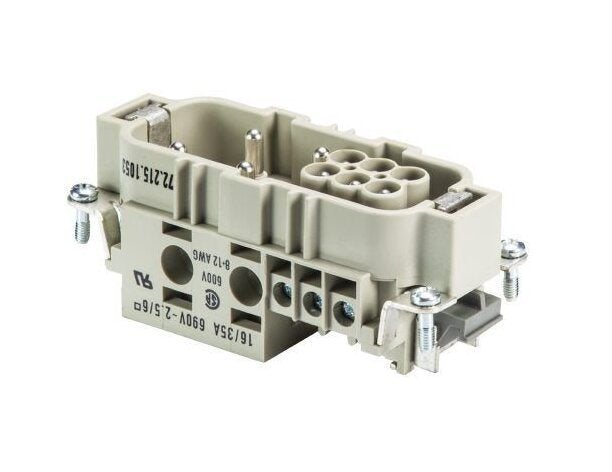

Wieland POW STS 4/6 DA D AG Male Industrial Connector Insert
Wieland POW STS 4/6 DA D AG Male Industrial Connector Insert
SKU:IND-8fbc3b
High-quality Wieland Industrial Connector Insert, 690V, 4x35A + 6x16A, screw connection, RoHS compliant
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Wieland POW STS 4/6 DA D AG Male Industrial Connector Insert
$59.99
Quantity: 1
Claim Your Seller Account
Wieland POW STS 4/6 DA D AG Male Industrial Connector Insert
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland POW STS 4/6 DA D AG Industrial Connector Insert is a high-quality male insert designed for industrial applications. Rated for 690V with 4x35A + 6x16A capacity, it features a screw connection for secure installations. This gray insert is highly durable, with a minimum operating temperature of -40°C and a maximum operating temperature of 120°C. With copper alloy contacts and silver-plated surfaces, it ensures reliable conductivity with a contact resistance of ≤ 1 mΩ. Compliant with RoHS standards, this insert meets industry-specific certifications and is suitable for various institutional procurement needs.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
6 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
1 mm²
Connection Data Number Of Poles
4
Connection Data Number Of Pole For Rated Current 2
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
10
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Alternative Size
16
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT POW STS 4/6 DA D AG
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
690 V
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
8 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
