Wieland POW STS 6 Male Industrial Connector Insert
Wieland POW STS 6 Male Industrial Connector Insert
SKU:IND-308d65
Wieland POW STS 6 6,0 69 AG Industrial Connector Insert for reliable and secure industrial connections. Compliant with RoHS and REACH-SVHC.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland POW STS 6 Male Industrial Connector Insert
$25.99
Quantity: 1
Claim Your Seller Account
Wieland POW STS 6 Male Industrial Connector Insert
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

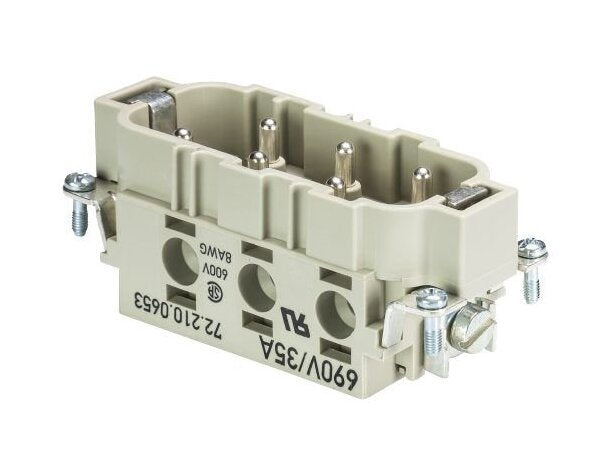

The Wieland POW STS 6 6,0 69 AG Industrial Connector Insert is designed for industrial applications requiring a robust and reliable connection solution. With a rated current of 35 A and a maximum voltage of 690 V, this male insert features copper alloy contacts with silver-plated surfaces for enhanced conductivity and durability. The screw connection type, along with protective contacts and wire protection, ensures secure and safe installations. Compliant with RoHS and REACH-SVHC regulations, this insert meets high standards of environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
6 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠0.6 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT POW STS 6 6,0 69 AG
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/1.2-1.6 N·m
Screws Head Design Ground Conductor Screws
M5/2.0-2.5 Slot N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
690 V
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
8 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
