Wieland PS1 24-5 Compact Line Power Supply
Wieland PS1 24-5 Compact Line Power Supply
SKU:POW-a3bea1
Reliable Wieland PS1 24-5 Compact Line Power Supply for stable 24V DC output with short-circuit protection. Ideal for industrial and institutional use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland PS1 24-5 Compact Line Power Supply
$129.99
Quantity: 1
Claim Your Seller Account
Wieland PS1 24-5 Compact Line Power Supply
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

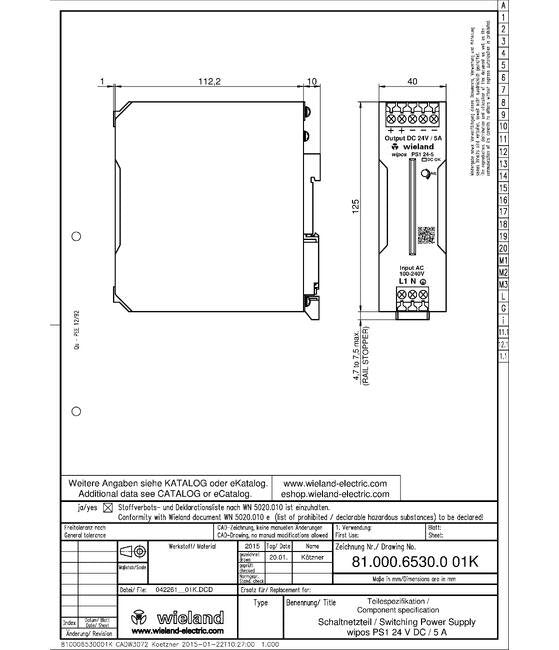

The Wieland PS1 24-5 Compact Line Power Supply is a reliable switched-mode power supply designed for industrial and institutional applications. With a nominal voltage of 24V DC and a continuous output current of 5A, this power supply offers a setting range of 21.6-27.6V DC, ensuring stable power delivery. It features sustained short-circuit protection and an input voltage range of 85-264V AC/90-350V DC, making it versatile for various power requirements. The compact design of 40 x 125 x 122.2 mm and robust metal housing allow for easy integration into existing systems while ensuring durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540
Dimensions Depth
122 mm
Dimensions Height
125 mm
Dimensions Horizontal Mounting Distance
20 mm
Dimensions Vertical Mounting Distance
75 mm
Dimensions Weight
620 g
Dimensions Width
40 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
5 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
24 V
General Housing Material
Metal
General Maximum Operating Temperature
70 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Transport Storage Temperature
70 ºC
General Model
Wipos PS1 24-5
General Modular Version
No
General Nominal Alternating Current Ac Input Voltage
85 to 264 V
General Nominal Direct Current Dc Input Voltage
90 to 350 V
General Number Of Phases
Single Phase Power Supply
General Other Mounting Type
No
General Parallel Service Possible
Yes
General Power
120 W
Input Maximum Alternating Current Ac Input Voltage
264 V
Input Maximum Direct Current Dc Input Voltage
350 V
Input Minimum Alternating Current Ac Input Voltage
85 V
Input Minimum Direct Current Dc Input Voltage
90 V
Output Maximum Output Voltage
27.6 V
Output Minimum Output Voltage
21.6 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
120 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
