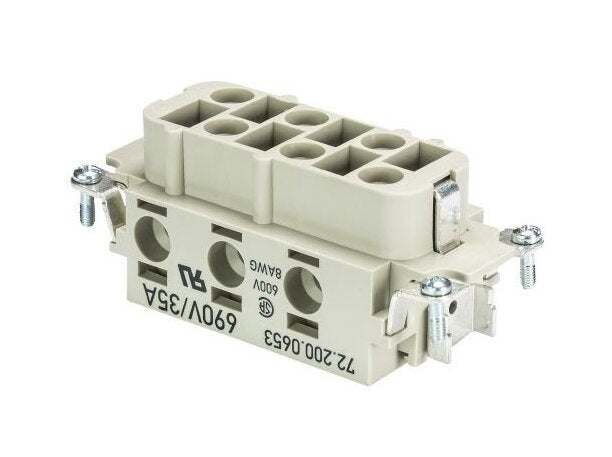

Wieland Revos POW BUS 6 6,0 69 AG Female Industrial Connector Insert
Wieland Revos POW BUS 6 6,0 69 AG Female Industrial Connector Insert
SKU:IND-eb06f9
High-performance Wieland Revos 6-pole + ground female industrial connector insert rated for 690V/35A. RoHS & REACH-SVHC compliant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland Revos POW BUS 6 6,0 69 AG Female Industrial Connector Insert
$45.99
Quantity: 1
Claim Your Seller Account
Wieland Revos POW BUS 6 6,0 69 AG Female Industrial Connector Insert
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Revos POW BUS 6 6,0 69 AG Female Industrial Connector Insert is designed for high-performance industrial applications. This 6-pole + ground connector features a screw connection, rated for 690V/35A. With a sturdy copper alloy contact material, silver-plated surface, and minimal contact resistance, it ensures reliable conductivity. Compliant with RoHS and REACH-SVHC standards, this connector prioritizes safety and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
6 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠0.6 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT POW BUS 6 6,0 69 AG
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
690 V
Technical Data Din En 61984 Nominal Current
35 A
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
8 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
14-8 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
6 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
