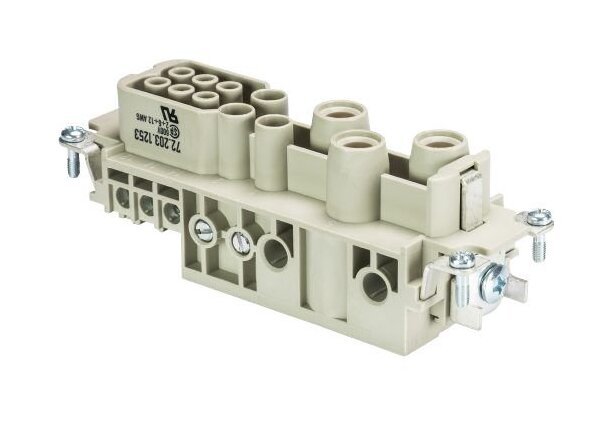

Wieland Revos POWER Female Insert 6/6 Industrial Connector
Wieland Revos POWER Female Insert 6/6 Industrial Connector
SKU:IND-d76c28
Reliable Wieland Revos POWER Female Insert 6/6 Industrial Connector, 40A, 600V, Screw Connection, RoHS Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland Revos POWER Female Insert 6/6 Industrial Connector
$49.99
Quantity: 1
Claim Your Seller Account
Wieland Revos POWER Female Insert 6/6 Industrial Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Revos POWER Female Insert 6/6 Industrial Connector is a high-quality connector insert designed for industrial use. With a maximum operating temperature of 120ºC and protective contact features, this connector ensures reliable and safe connections. It is rated for 40A and 600V according to UL/CSA standards, meeting stringent technical and safety requirements. The silver-plated copper alloy contacts with low contact resistance guarantee efficient power transmission. RoHS compliant and exempted from lead substances, this connector is environmentally friendly and suitable for various applications.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
10 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
1 mm²
Connection Data Number Of Poles
6
Connection Data Number Of Pole For Rated Current 2
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
12
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Alternative Size
16
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT POW BUS 6/6 GC CA AG
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage 2
400 V
Technical Data Din En 61984 Maximum Rated Voltage Faceground
400 V
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
