Wieland RFID Transponder Switch - STS 0213

Name: Wieland RFID Transponder Switch - STS 0213
Brand: Wieland Electric Inc.
SKU: SAF-c0457b
Price: 79.99 USD
Availability: OutOfStock

SKU:SAF-c0457b

Safety-enhanced Wieland RFID Transponder Switch with Automatic Start, IP67 protection, and ISO 13849-1, IEC 62061 compliance.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

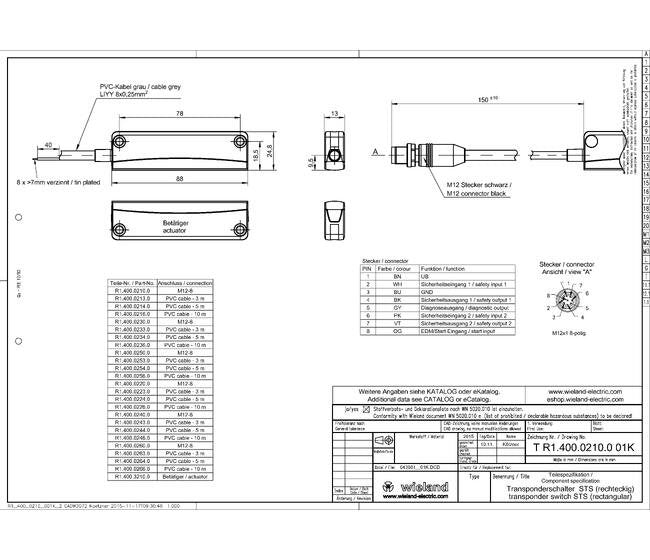

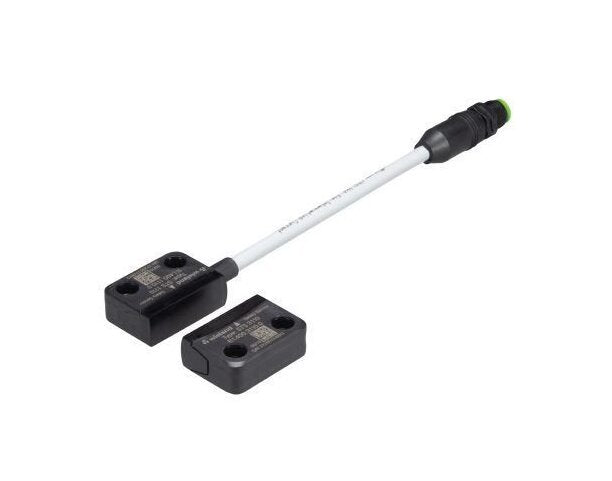

Enhance safety functions with the Wieland RFID Transponder Switch - STS 0213. This coded switch and actuator feature Automatic Start technology with a switching distance of 10 mm. Its compact design of 88 x 25 x 13 mm ensures easy integration. With IP67 protection and 3m connection cable, this switch offers reliable performance in demanding environments. Compliant with ISO 13849-1 Level e, IEC 62061 SILCL 3, and REACH-SVHC standards.

Product Specifications

Classification Eclass 81 Classification

27270105

Classification Etim 40 Classification

EC002544

Classification Etim 50 Classification

EC002544

Classification Etim 60 Classification

EC002544

Classification Etim 70 Classification

EC002544

General Cable Length

3 m

General Crossshort Circuit Identification Possible

Yes

General Degree Of Protection Ip

IP67

General Housing Material

Plastic

General Number Of Protected Contact Energized Outputs

General Protected Switch Distance Off

18 mm

General Protected Switch Distance On

8 mm

General Suited For Safety Functions

Yes

General Type Of Actuation

Transponder

General Type Of Electric Connection

Cable

Output Circuit Maximum Output Current

400 mA

Output Circuit Number Of Protected Semiconductor Outputs

Product Compliance Reach Svhc Conformity Status

Compliant

Safety Parameters Category Iso 13849 1

Safety Parameters Height Of Sensor

25 mm

Safety Parameters Hot Functional Testing Hft

Safety Parameters Length Of Sensor

13 mm

Safety Parameters Mission Time Tm

20Â a

Safety Parameters Pfhd High Demand Mode

2.24Â E-9 1/h

Safety Parameters Pl Iso 13849 1

Level e

Safety Parameters Sensor Width

88 mm

Safety Parameters Silcl Iec 62061
