Wieland RFK 1/95 F S35/V0 Feed-Through Terminal Block
Wieland RFK 1/95 F S35/V0 Feed-Through Terminal Block
SKU:DIN-e7a27f
High-quality Wieland RFK 1/95 F S35/V0 Feed-Through Terminal Block with 95mm² nominal cross section, DIN rail mountable, and RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RFK 1/95 F S35/V0 Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RFK 1/95 F S35/V0 Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

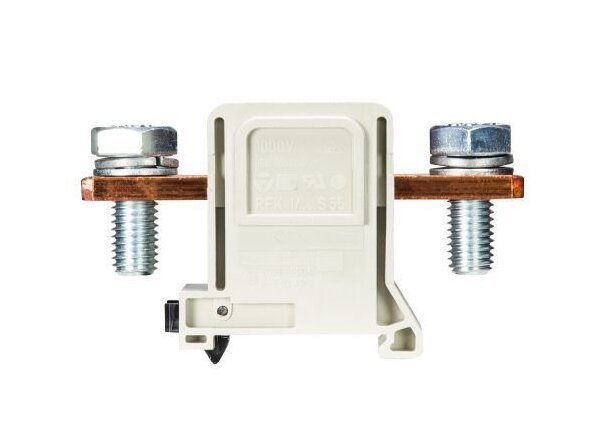

The Wieland RFK 1/95 F S35/V0 Feed-Through Terminal Block is a high-quality terminal block designed for secure electrical connections. With a nominal cross section of 95mm², it offers a rated current of 250A and a maximum rated voltage of 1000V, ensuring reliable performance. This gray terminal block features a screw connection, insulating housing made of PA666, and meets V0 inflammability class according to UL94 standards. It is DIN rail mountable and complies with RoHS and REACH-SVHC standards, making it an environmentally friendly and safe choice for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
92 mm²
Connection Data Maximum Stranded Cross Section
95 mm²
Connection Data Minimum Fine Stranded Cross Section
16 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
RFK 1/95 F S35/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
95 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
32 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
92 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
250 A
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
6-3/0 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
6-3/0 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
200 A
Technical Data Ulcsa Factory Wiring Current
200 A
Technical Data Ulcsa Field Wiring Current
200 A
Technical Data Ulcsa Torque Conductor Mounting
10 N·m
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
