Wieland RFK 1/95 FMK S35/V0 Feed-Through Terminal Block
Wieland RFK 1/95 FMK S35/V0 Feed-Through Terminal Block
SKU:DIN-05dfc2
Reliable Wieland RFK 1/95 FMK S35/V0 Feed-Through Terminal Block for secure electrical connections. Compliant with RoHS & REACH-SVHC.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland RFK 1/95 FMK S35/V0 Feed-Through Terminal Block
$49.99
Quantity: 1
Claim Your Seller Account
Wieland RFK 1/95 FMK S35/V0 Feed-Through Terminal Block
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

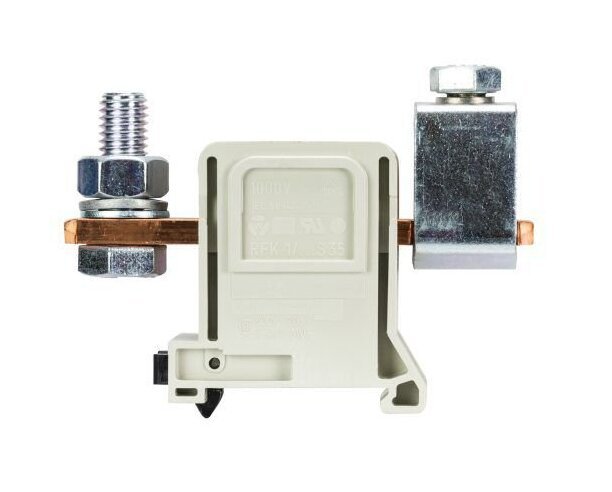

The Wieland RFK 1/95 FMK S35/V0 Feed-Through Terminal Block is a robust solution for electrical installations. With a nominal cross-section of 95 mm², rated current of 250 A, and a maximum rated voltage of 1000 V, this terminal block ensures reliable connections. It features a gray insulating housing made of PA666 material and meets V0 inflammability class per UL94 standards. The screw connections allow for easy installation on DIN Rails and offer a secure grip on wire sizes ranging from 16 mm² to 95 mm². Compliant with RoHS and REACH-SVHC standards, this terminal block is ideal for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
95 mm²
Connection Data Maximum Stranded Cross Section
95 mm²
Connection Data Minimum Fine Stranded Cross Section
16 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
24 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
RFK 1/95 FMK S35/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
95 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
32 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
92 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
250 A
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
6-3/0 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
6-3/0 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
200 A
Technical Data Ulcsa Factory Wiring Current
200 A
Technical Data Ulcsa Field Wiring Current
200 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
