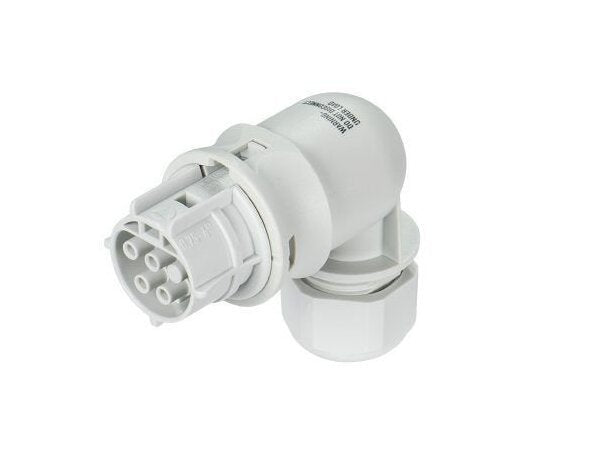

The Wieland RST20I4S B1 YR2 GL Circular Connector is a high-quality pluggable electrical connector designed for demanding applications. This 4-pole female connector features a screw connection suitable for 250/400V applications with PE. With a rated current of 20A and a maximum cable diameter of 14mm, it ensures secure and reliable connections. The connector is IP66/IP68/IP69 rated for protection against dust and water, making it ideal for outdoor use. Its polyamide housing, copper zinc contacts, and silver-plated surface finish ensure durability and conductivity. This product is RoHS compliant with exceptions and designed for easy conductor connection without ferrules according to EN 60999-1.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
14 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Cable Diameter
10 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
26.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
62.3 mm
General Color Of Codingcontact Carrier
Light Gray
General Color Of Housing Inclusive Strain Relief
Light Gray
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.325 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Female
Note Note
RST® terminals with screw clamping allow the connection of conductors without special preparation (without ferrules) according to EN 60999-1.
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Technical Data Maximum Rated Voltage
600 V
