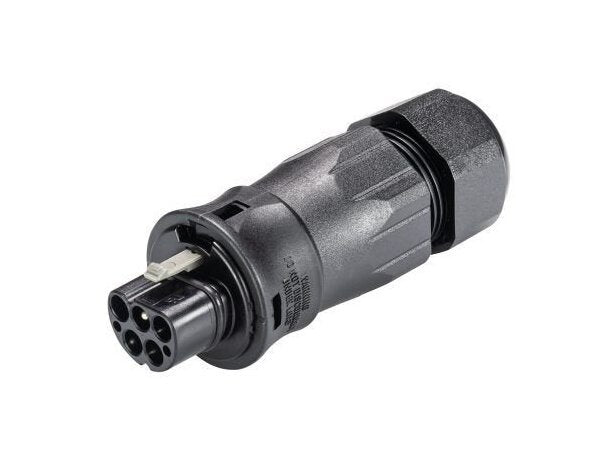

Meet your electrical connection needs with the Wieland RST20I4S S1 ZR3 V SW Circular Connector. This 4-pole male connector features a screw connection, rated for applications at 250/400V with PE. With a robust housing and black coding color, it is designed for cable diameters of 13-18mm. Enjoy a reliable and secure connection with self-locking capabilities and a strain relief feature. Compliant with IP66, IP68, and IP69 protection standards, this connector ensures durability and safety in outdoor environments.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
18 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Cable Diameter
13 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
37 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
35.4 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.358 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Male
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
