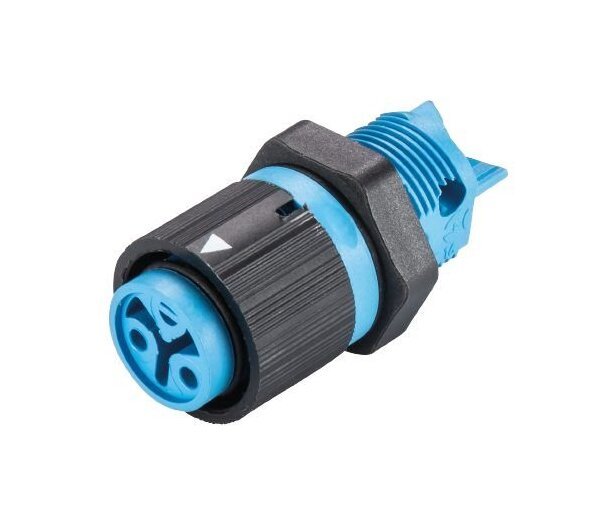

The Wieland RST16I3/2S B1 M02 H BL Device Connector is a high-quality outdoor-rated circular electrical connector designed for reliable power transmission. This female connector features 2 poles, screw connections, and a coding color of light blue. With a rated impulse voltage of 4 kV and a maximum rated voltage of 600V, it ensures safe and efficient electrical connections. The connector is IP69 and Type 4X rated for protection against dust and water, making it ideal for outdoor use. With RoHS compliance and lead-free components, it meets environmental standards as well.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
1.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
19.9 mm
Dimensions Length
41.9 mm
Dimensions Width
19.9 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Blue
General Connection Type
Screw Connection
General Connector Type
Female
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2
General Model
RST16I3/2S B1 M02 H BL
General Number Of Poles
3
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.061 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connecting Thread Metric
M16
Model Degree Of Protection
IP66 | IP68 (3m;2h) | IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Thread Size
M16
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
