Wieland RST16I3/2S Outdoor Device Connector
Wieland RST16I3/2S Outdoor Device Connector
SKU:CIR-f02857
Rugged Wieland RST16I3/2S Outdoor Connector, IP69 rated, 2-pole female screw connection, ideal for outdoor use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST16I3/2S Outdoor Device Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST16I3/2S Outdoor Device Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

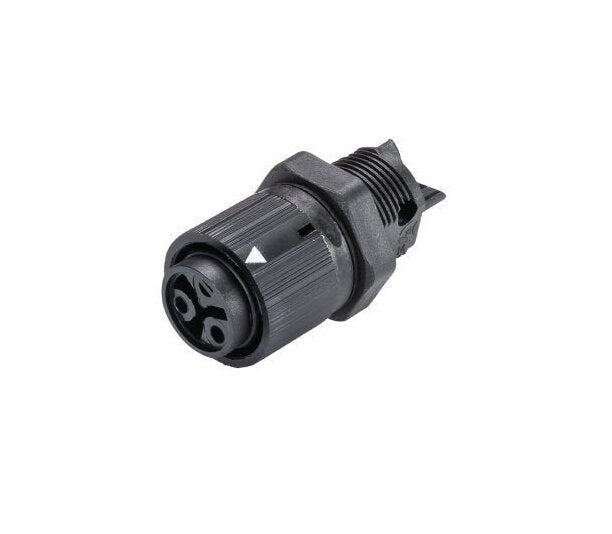

The Wieland RST16I3/2S B1 M02 SW Device Connector is a high-quality, IP69 rated outdoor circular electrical connector designed for demanding applications. Featuring a screw connection, self-locking mechanism, and black coding for easy identification, this 2-pole female connector supports voltages up to 600V and currents up to 16A. With a polyamide housing, halogen-free construction, and copper zinc contacts, it ensures reliable performance in diverse environments. This connector meets RoHS conformity and REACH-SVHC compliance with exceptions, making it a sustainable choice for environmentally-conscious buyers.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
1.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

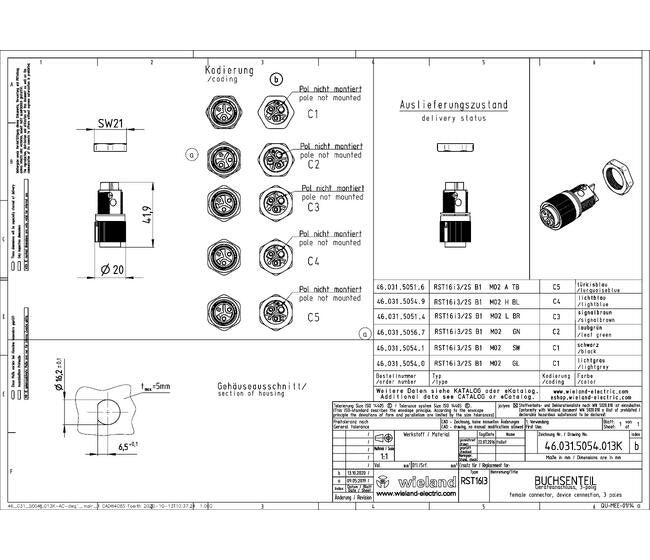

Dimensions Height
19.9 mm
Dimensions Length
41.9 mm
Dimensions Width
19.9 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Connector Type
Female
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N
General Model
RST16I3/2S B1 M02 SW
General Number Of Poles
3
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.06 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connecting Thread Metric
M16
Model Degree Of Protection
IP66 | IP68 (3m;2h) | IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Thread Size
M16
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
