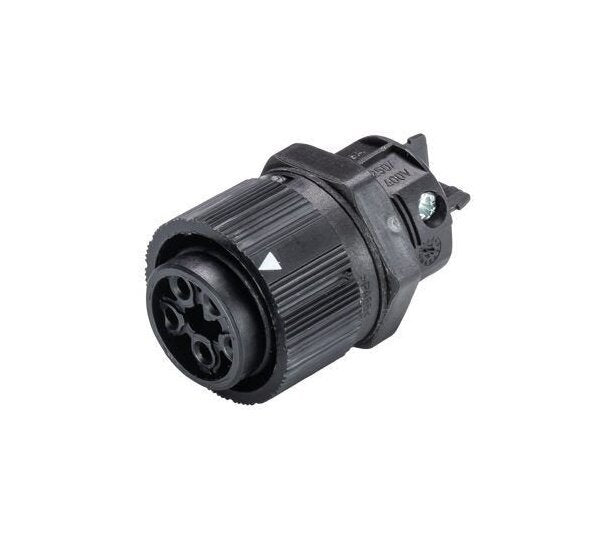

Wieland RST16I5/4S B1 M03 SW Outdoor Device Connector
Wieland RST16I5/4S B1 M03 SW Outdoor Device Connector
SKU:CIR-71c30c
Reliable Wieland RST16I5/4S B1 M03 SW Device Connector for outdoor use, 5-pole female screw connection with black coding, IP69 & Type 4X/6P protection.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland RST16I5/4S B1 M03 SW Outdoor Device Connector
$39.99
Quantity: 1
Claim Your Seller Account
Wieland RST16I5/4S B1 M03 SW Outdoor Device Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST16I5/4S B1 M03 SW Device Connector is a high-quality outdoor-rated electrical connector designed for demanding applications. With a 5-pole female configuration, screw connection, and color-coded in black, this connector ensures secure and reliable connections. Rated for 250/400V, 16A, and featuring a self-locking mechanism, it offers ease of use and peace of mind. Compliant with IP69 and Type 4X/6P protection standards, this connector is durable and resistant to harsh environments. The housing is made of halogen-free polyamide, ensuring safety and reliability.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
24 mm
Dimensions Length
41.6 mm
Dimensions Width
24 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Connector Type
Female
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | 3 | PE
General Model
RST16I5/4S B1 M03 SW
General Number Of Poles
5
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.083 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connecting Thread Metric
M20,2
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
