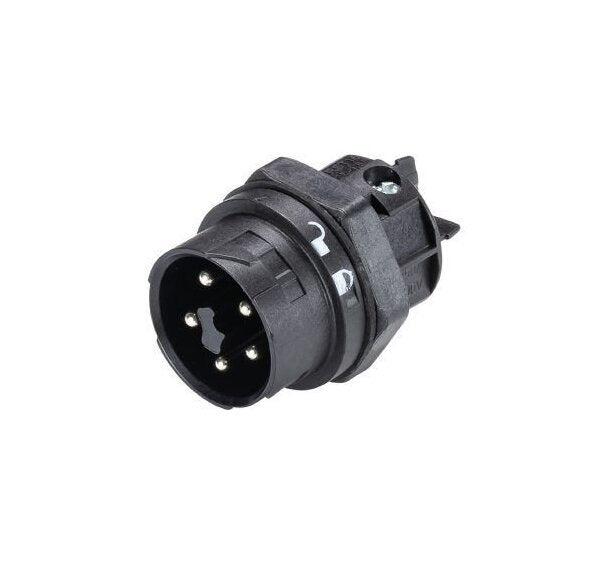

Wieland RST16I5 Male Device Connector, 5 Pole, M20 Screw Connection, 250/400V, 16A, Black
Wieland RST16I5 Male Device Connector, 5 Pole, M20 Screw Connection, 250/400V, 16A, Black
SKU:CIR-733b90
Premium Wieland RST16I5 Male Device Connector - 250/400V, 16A, IP69 Protection, Polyamide Housing, Copper Zinc Contacts.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland RST16I5 Male Device Connector, 5 Pole, M20 Screw Connection, 250/400V, 16A, Black
$34.99
Quantity: 1
Claim Your Seller Account
Wieland RST16I5 Male Device Connector, 5 Pole, M20 Screw Connection, 250/400V, 16A, Black
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST16I5 S S1 M03 SW Device Connector is a premium quality male connector designed for demanding electrical applications. With a straight angle plug and a screw connection type, this connector ensures secure and reliable connections. It features 5 poles with coding color black, suitable for 250/400V applications with PE. Meeting IP69 and Type 4X/6P protection standards, this connector can withstand harsh outdoor conditions. The connector is made of high-quality polyamide housing material, halogen-free, and features copper zinc contacts for optimal conductivity and durability.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

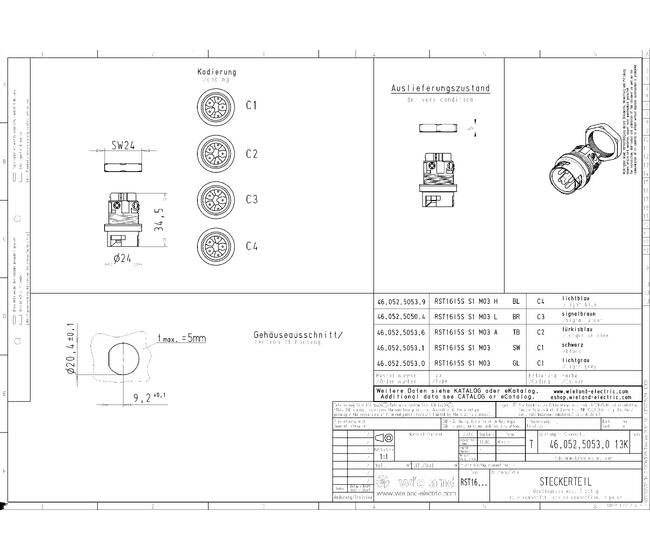

Dimensions Height
24 mm
Dimensions Length
34.5 mm
Dimensions Width
24 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color
Black
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Connector Type
Male
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Model
RST16I5 S S1 M03 SW
General Number Of Poles
5
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.054 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
