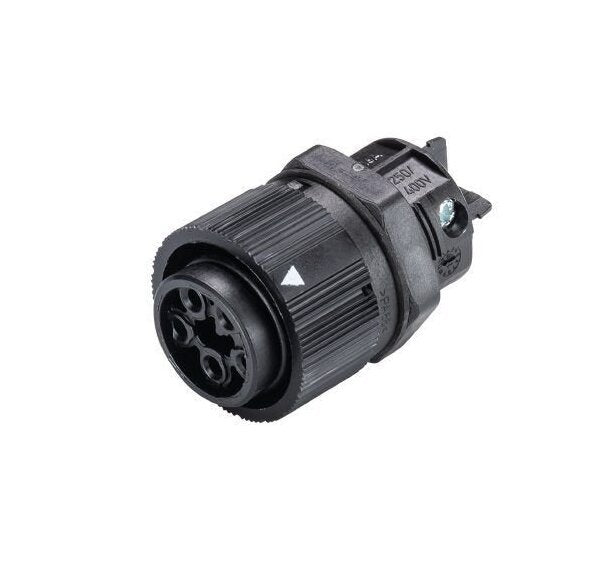

The Wieland RST16I5 S B1 M03 SW Device Connector is a high-quality outdoor-rated circular electrical connector designed for demanding applications. With a color-coded black female connector and 5 poles, this device offers a rated current of 16A and can handle voltages between 250V to 400V. The screw connection ensures a secure fit, and the self-locking feature adds an extra layer of safety. Made of durable polyamide housing material and copper zinc contacts, this connector is IP69-rated for protection against dust and water, making it ideal for outdoor use. Compliant with RoHS and REACH regulations, this connector meets industry standards for environmental safety.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

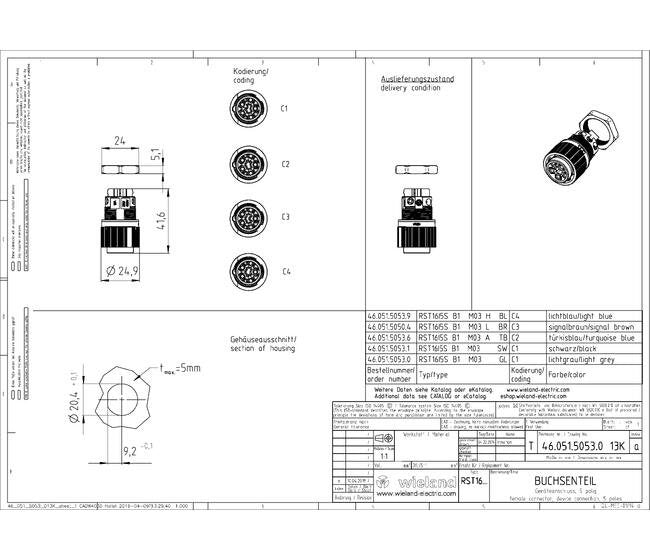

Dimensions Height
24 mm
Dimensions Length
41.6 mm
Dimensions Width
24 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color
Black
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Connector Type
Female
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Model
RST16I5 S B1 M03 SW
General Number Of Poles
5
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.084 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
