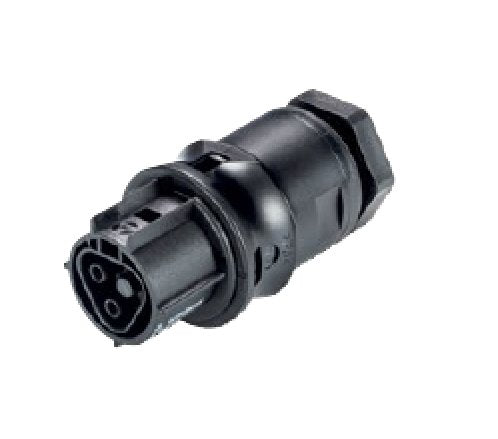

Wieland RST20I2 Female Device Connector, M20 Thread, Black Color
Wieland RST20I2 Female Device Connector, M20 Thread, Black Color
SKU:CIR-4b08ba
Secure outdoor electrical connections with the Wieland RST20I2 Female Device Connector. Rated 600V/20A, IP69 protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I2 Female Device Connector, M20 Thread, Black Color
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I2 Female Device Connector, M20 Thread, Black Color
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I2 Female Device Connector is a high-quality 2-pole connector designed for outdoor use. With a sturdy screw connection and a straight plug design, this connector ensures secure and reliable electrical connections. It is rated for a maximum voltage of 600 V and a current of 20 A, making it suitable for a wide range of applications. The IP69 protection rating and compliance with international and Canadian standards ensure optimal performance and safety in challenging environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Female
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
