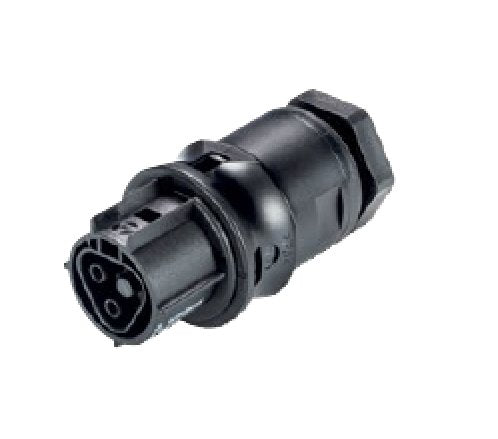

Wieland RST20I2 Female Device Connector, M20 Thread, Pebble Gray
Wieland RST20I2 Female Device Connector, M20 Thread, Pebble Gray
SKU:CIR-aef4e2
Durable Wieland RST20I2 Female Device Connector in Pebble Gray for outdoor use, rated 20A, IP69 protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I2 Female Device Connector, M20 Thread, Pebble Gray
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I2 Female Device Connector, M20 Thread, Pebble Gray
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I2 Female Device Connector in Pebble Gray is designed for outdoor use with a durable spring clamp connection. With a straight angle plug and 2 poles, this connector supports a rated current of 20 A and withstands voltages up to 600 V. It meets IP69 and Type 4X/6P protection standards, making it ideal for demanding environments. The wire sizes comply with IEC and cULus standards, ensuring reliable performance. Technical details subject to change.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Pebble Gray
General Connection Type
Spring Clamp Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Female
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
