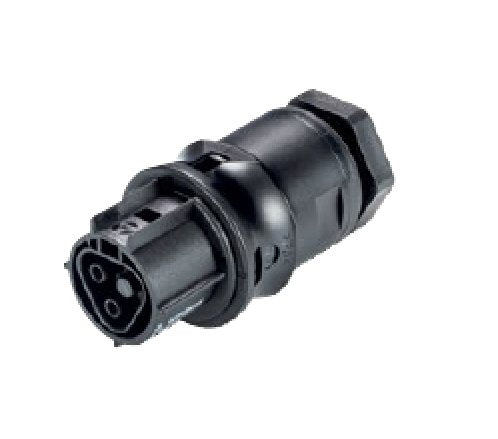

Wieland RST20I2 Female Device Connector - Signal Brown (M20 Thread)
Wieland RST20I2 Female Device Connector - Signal Brown (M20 Thread)
SKU:CIR-94497e
The Wieland RST20I2 Female Device Connector - Signal Brown, ideal for outdoor use, offers 20A current handling and 600V voltage rating. Compliant with IP69, Type 4X/6P standards.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland RST20I2 Female Device Connector - Signal Brown (M20 Thread)
$15.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I2 Female Device Connector - Signal Brown (M20 Thread)
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I2 Female Device Connector in Signal Brown offers a reliable screw connection suitable for outdoor use. With a straight angle plug and 2 poles, this connector is rated for 20A current at voltages up to 600V. It accommodates wire sizes ranging from 0.75 to 6 mm² based on IEC standards and is IP69 and Type 4X/6P protected. Compliant with international and North American wire size regulations, this connector ensures secure and efficient electrical connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Female
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
