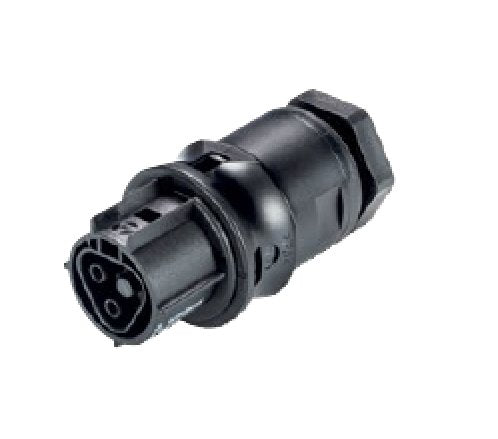

Wieland RST20I2 Female Device Connector - Signal Brown, Thread Size M20
Wieland RST20I2 Female Device Connector - Signal Brown, Thread Size M20
SKU:CIR-9f3754
Wieland RST20I2 Female Device Connector - Outdoor-rated, Signal Brown, 2-Pole, 20A, M20 Thread Size
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I2 Female Device Connector - Signal Brown, Thread Size M20
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I2 Female Device Connector - Signal Brown, Thread Size M20
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I2 Female Device Connector in Signal Brown is a high-quality 2-pole connector suitable for outdoor use. It features a spring clamp connection for secure wiring, a straight plug angle, and a rugged design with IP69 and Type 4X/6P protection ratings. This connector supports wire sizes ranging from 0.75 to 6 mm² (IEC) and 16 to 10 AWG (cULus), meeting stringent international and Canadian standards for electrical connectors. With a rated current of 20A and compatibility with voltages up to 600V, this connector ensures reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Spring Clamp Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Female
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
