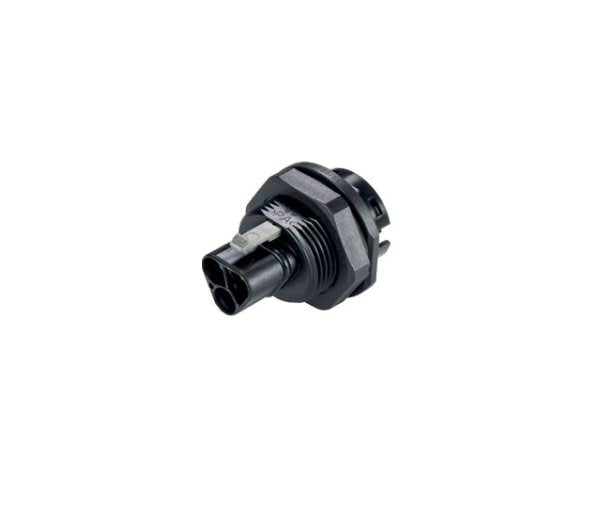

Wieland RST20I2 Male Connector, M25 Thread, Signal Brown
Wieland RST20I2 Male Connector, M25 Thread, Signal Brown
SKU:CIR-c3577d
High-quality Wieland 2-pole male connector with M25 thread, rated for 600V & 20A, IP69 protection
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland RST20I2 Male Connector, M25 Thread, Signal Brown
$34.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I2 Male Connector, M25 Thread, Signal Brown
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I2 Male Device Connector in Signal Brown is a high-quality, 2-pole connector designed for outdoor use. Featuring a spring clamp connection and a straight plug angle, this connector is rated for a maximum voltage of 600V with a rated current of 20A. With IP69 and Type 4X / 6P protection ratings, it ensures reliable performance even in harsh environments. Suitable for cable diameters ranging from 6mm to 18mm, this connector meets international standards for wire sizes, making it a secure and efficient choice for electrical connections.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Spring Clamp Connection
General Connector Type
Male
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Male
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
