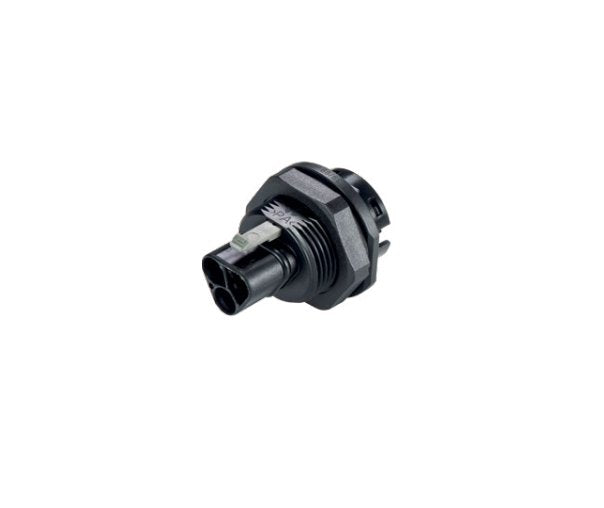

Wieland RST20I2 Male Device Connector - M25 Thread Size, Light Gray
Wieland RST20I2 Male Device Connector - M25 Thread Size, Light Gray
SKU:CIR-01336e
Reliable Wieland RST20I2 Male Device Connector in light gray, ideal for outdoor use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I2 Male Device Connector - M25 Thread Size, Light Gray
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I2 Male Device Connector - M25 Thread Size, Light Gray
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I2 Male Device Connector in light gray color is a durable and reliable solution for outdoor applications. This connector features screw connection, straight plug angle, and 2 poles with a rated current of 20A. It meets international standards for cable diameters, wire sizes, and protection levels, ensuring safe and efficient electrical connections.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Gray
General Connection Type
Screw Connection
General Connector Type
Male
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Male
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
