Wieland RST20I3 Female Device Connector - M20 Thread, Light Gray
Wieland RST20I3 Female Device Connector - M20 Thread, Light Gray
SKU:CIR-5eb0ad
High-quality Wieland RST20I3 Female Device Connector with M20 thread size, ideal for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I3 Female Device Connector - M20 Thread, Light Gray
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3 Female Device Connector - M20 Thread, Light Gray
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

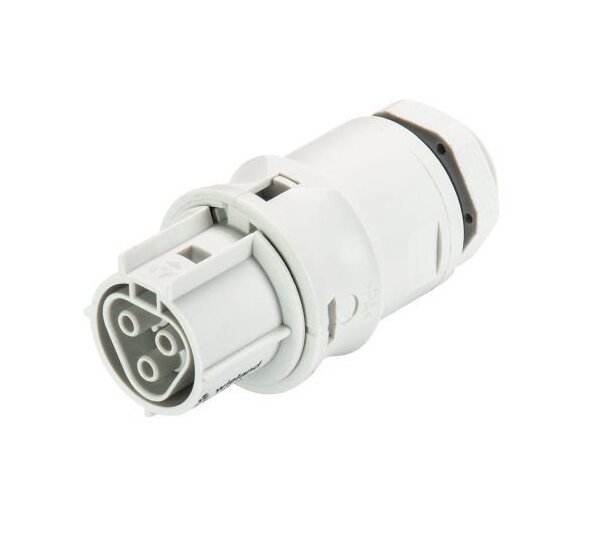

The Wieland RST20I3 Female Device Connector in light gray is a high-quality 3-pole connector suitable for outdoor use. With a screw connection and a straight plug design, it ensures secure connections. Rated for 20A current, 600V maximum voltage, and IP69 protection, it meets stringent industry standards for reliability and durability. The connector supports wire sizes ranging from 0.75 to 6 mm² according to IEC standards, making it versatile for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Gray
General Connection Type
Screw Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I3 Female
General Number Of Poles
3
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
