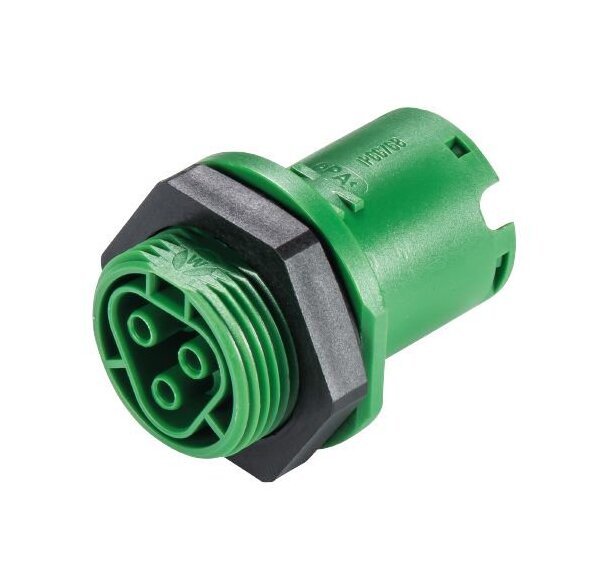

Wieland RST20I3 Female Device Connector, M25 Thread, Leaves Green
Wieland RST20I3 Female Device Connector, M25 Thread, Leaves Green
SKU:CIR-6db7a4
Wieland RST20I3 Female Device Connector for secure outdoor electrical connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I3 Female Device Connector, M25 Thread, Leaves Green
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3 Female Device Connector, M25 Thread, Leaves Green
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I3 Female Device Connector in Leaves Green color features a Spring Clamp Connection for secure installation. With a straight Angle of Plug and 3 Poles, this connector is rated for 20 A current capacity at voltages up to 600V. It accommodates cable diameters ranging from 6 to 18 mm, meeting IEC and cULus wire size standards. Designed for outdoor use, this IP69-rated connector ensures reliable connections in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Leaves Green
General Connection Type
Spring Clamp Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I3 Female
General Number Of Poles
3
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
