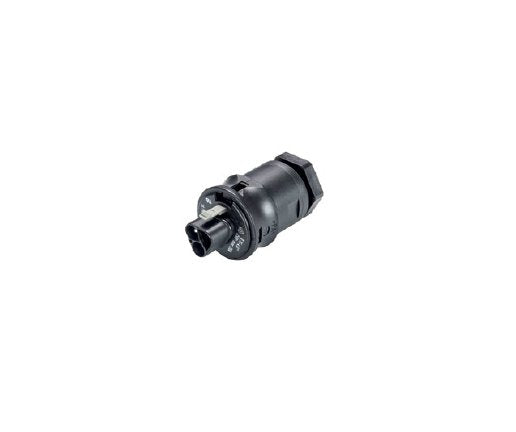

Wieland RST20I3 Male Device Connector, M20 Thread Size, Black Color

Name: Wieland RST20I3 Male Device Connector, M20 Thread Size, Black Color
Brand: Wieland Electric Inc.
SKU: CIR-846808
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-846808

Reliable Wieland RST20I3 Male Connector for secure outdoor electrical connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland RST20I3 Male Device Connector is designed for secure electrical connections in outdoor settings. With a spring clamp connection and 3 poles, this connector ensures reliable performance. Rated for 20A current and IP69 protection, it meets rigorous industry standards for durability and functionality. The versatile wire sizes compatible with IEC, cULus, and CSA standards make it ideal for various applications.

Product Specifications

General Angle Of Plug

Straight

General Brands

Wieland

General Color Of Codingcontact Carrier

Black

General Connection Type

Spring Clamp Connection

General Connector Type

Male

General Maximum Rated Voltage

600 V

General Minimum Rated Voltage

250 V | 400 V

General Model

RST20I3 Male

General Number Of Poles

General Rated Current

20 A

General Rated Current Canada

15 A

Note Note

Technical details are subject to change

Technical Data Alternating Current Ac Voltage Disconnect Under L

350 V

Technical Data Current Disconnect Under Load Usa And Canada

20 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Thread Size

M20

Technical Data Wire Size According To Canadian Standards Associa

16 to 12 AWG

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.50 to 2.5 mmÂ²

Wieland RST20I3 Male Device Connector, M20 Thread Size, Black Color
