Wieland RST20I3 Male Device Connector - M20 Thread Size, Signal Brown
Wieland RST20I3 Male Device Connector - M20 Thread Size, Signal Brown
SKU:CIR-df85f5
Wieland RST20I3 Male Device Connector - Reliable outdoor connector with IP69 & Type 4X/6P protection, 20A, 600V
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland RST20I3 Male Device Connector - M20 Thread Size, Signal Brown
$24.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3 Male Device Connector - M20 Thread Size, Signal Brown
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

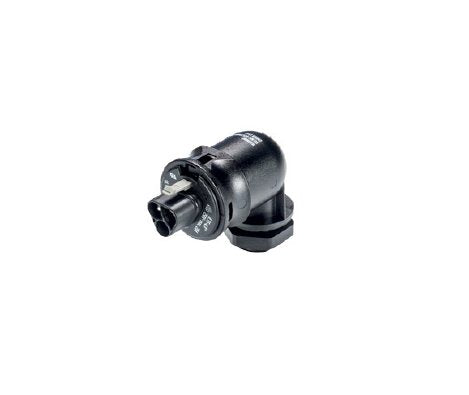

The Wieland RST20I3 Male Device Connector features a screw connection, angled 90º plug, and 3 poles. With a rated current of 20A and maximum voltage of 600V, this connector is designed for durability in outdoor environments. It meets IP69 and Type 4X / 6P protection standards, ensuring reliable performance under challenging conditions. Wire sizes ranging from 0.75 to 6 mm² (IEC) and 16 to 10 AWG (cULus) make it versatile for various wiring applications.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Connector Type
Male
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I3 Male
General Number Of Poles
3
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
