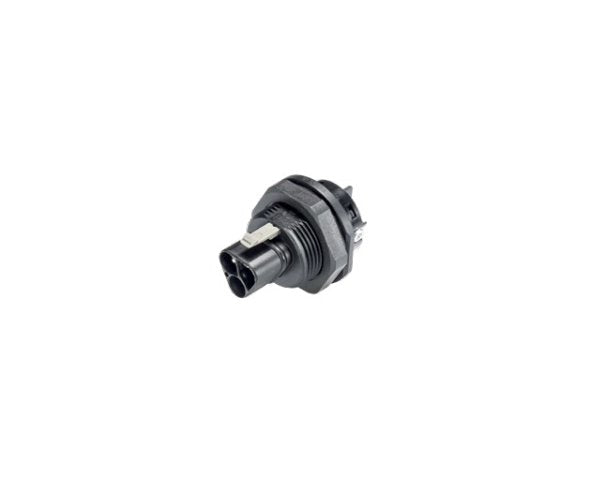

Wieland RST20I3 Male Device Connector - Thread Size M25, Black
Wieland RST20I3 Male Device Connector - Thread Size M25, Black
SKU:CIR-88d5ac
Secure outdoor electrical connection with Wieland RST20I3 Male Device Connector. M25 thread size, black color, IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I3 Male Device Connector - Thread Size M25, Black
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3 Male Device Connector - Thread Size M25, Black
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I3 Male Device Connector is a reliable solution for outdoor electrical connections. With a thread size of M25 and a sturdy black color design, this connector offers a secure screw connection for 3 poles. It is rated for a maximum voltage of 600V and features a IP69 protection level, making it suitable for harsh outdoor environments. Compliant with international standards for wire sizes, this connector ensures safe and efficient electrical connectivity.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Connector Type
Male
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I3 Male
General Number Of Poles
3
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
