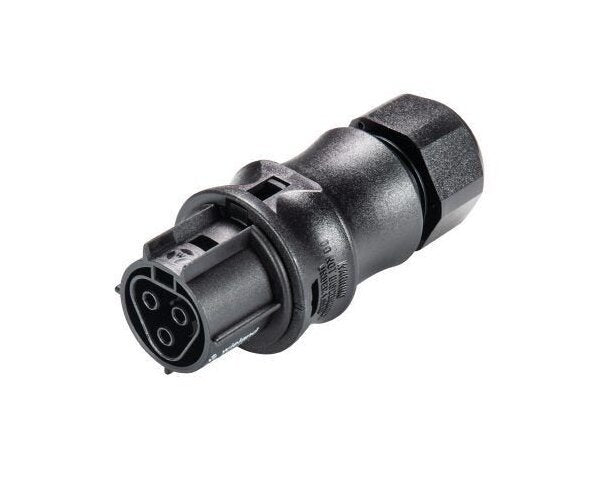

Wieland RST20I3F B2 ZR1 SW 3-Pole Female Electrical Connector - 20A, IP69 Rated
Wieland RST20I3F B2 ZR1 SW 3-Pole Female Electrical Connector - 20A, IP69 Rated
SKU:CIR-94efe5
Reliable 3-pole female electrical connector with IP69 protection for outdoor use. Secure connections for 250V applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I3F B2 ZR1 SW 3-Pole Female Electrical Connector - 20A, IP69 Rated
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3F B2 ZR1 SW 3-Pole Female Electrical Connector - 20A, IP69 Rated
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the Wieland RST20I3F B2 ZR1 SW Electrical Connector, designed for 250V applications with PE. This 3-pole female connector features a straight spring clamp connection, black coding color, and IP66/IP68/IP69 protection. With a self-locking mechanism, black housing, and copper-zinc contacts, it ensures secure, reliable connections. Compliant with RoHS and REACH-SVHC standards, this connector is suitable for 6-10mm cables, making it ideal for outdoor use in various industrial settings.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm² | 16 AWG
Connection Data Maximum Solid Connection Cross Section
2.5 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
1.5 mm²
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm² | 20 AWG
Connection Data Minimum Solid Connection Cross Section
0.5 mm² | 20 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
35 mm
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
14.5 mm

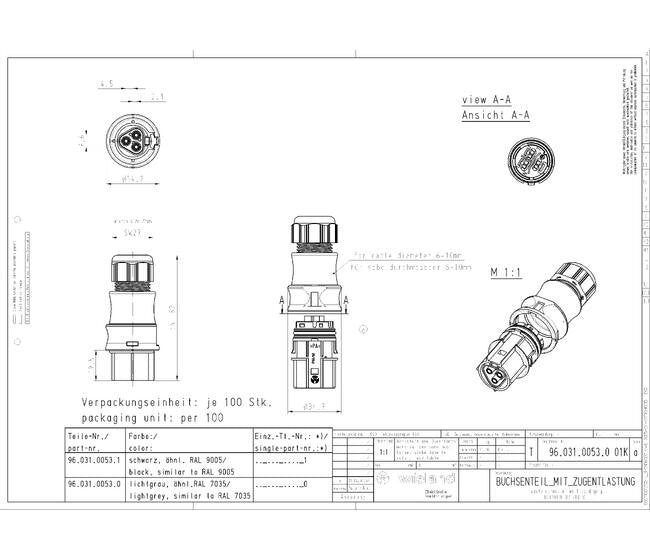

Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.291 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
