Wieland RST20I3F B2 ZR2 SW Circular Connector - 3 Pole, 20A, Female
Wieland RST20I3F B2 ZR2 SW Circular Connector - 3 Pole, 20A, Female
SKU:CIR-1ab321
Premium Wieland Circular Connector - 3 Pole, 20A, Female, IP68/IP69 Rated
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland RST20I3F B2 ZR2 SW Circular Connector - 3 Pole, 20A, Female
$34.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3F B2 ZR2 SW Circular Connector - 3 Pole, 20A, Female
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

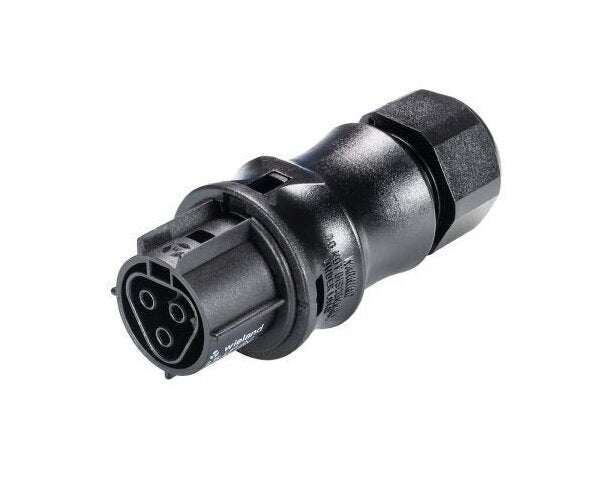

The Wieland RST20I3F B2 ZR2 SW Circular Connector is a premium pluggable electrical connector designed for demanding applications. This 3-pole connector features a female connection with spring clamp technology, suitable for 250V applications. With a robust construction and IP66 | IP68 | IP69 protection ratings, this connector ensures reliable performance in outdoor settings. It accommodates cable diameters between 10-14mm and offers self-locking and strain relief features for secure installations. Compliant with RoHS standards, this connector is halogen-free and environmentally friendly, making it a sustainable choice for various projects.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
14 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
1.5 mm² | 16 AWG
Connection Data Minimum Cable Diameter
10 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm² | 20 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 20 AWG
Connection Data Sheath Strip Length
35 mm
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
14.5 mm
Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.291 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
