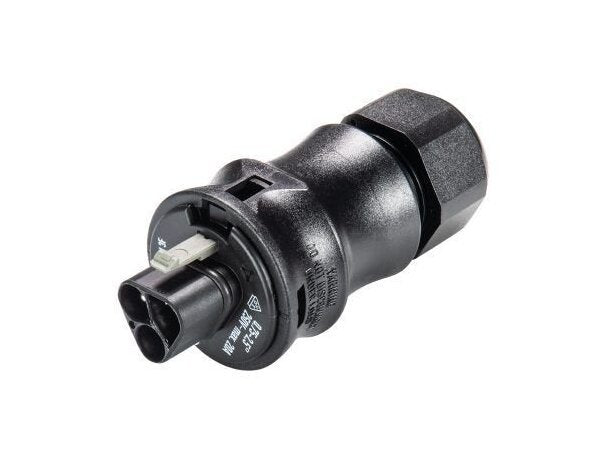

Wieland RST20I3F S2 ZR1 V SW Circular Electrical Connector
Wieland RST20I3F S2 ZR1 V SW Circular Electrical Connector
SKU:CIR-a4b86d
High-quality Wieland 3-pole male circular connector with 20A current rating, IP69 protection, and RoHS compliance.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Wieland RST20I3F S2 ZR1 V SW Circular Electrical Connector
$32.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3F S2 ZR1 V SW Circular Electrical Connector
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I3F S2 ZR1 V SW Circular Electrical Connector is a high-quality 3-pole male connector designed for demanding applications. With a straight angle plug and spring clamp connection, this connector offers a secure and reliable connection for cables with diameters ranging from 6mm to 10mm. It boasts a 20A rated current, IP69 degree of protection, and a black housing with strain relief. The connector is compliant with RoHS directives, ensuring environmental responsibility and safety.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm² | 14 AWG
Connection Data Maximum Stranded Connection Cross Section
1.5 mm² | 16 AWG
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm² | 20 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 20 AWG
Connection Data Sheath Strip Length
35 mm
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
14.5 mm
Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.267 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
