Wieland RST20I3S B1 ZR1 SW Outdoor Circular Connector
Wieland RST20I3S B1 ZR1 SW Outdoor Circular Connector
SKU:CIR-0f25c9
Wieland RST20I3S B1 ZR1 SW Circular Connector - 3-pole female connector for outdoor use, IP66/IP68/IP69 rated, RoHS & REACH-SVHC compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I3S B1 ZR1 SW Outdoor Circular Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I3S B1 ZR1 SW Outdoor Circular Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

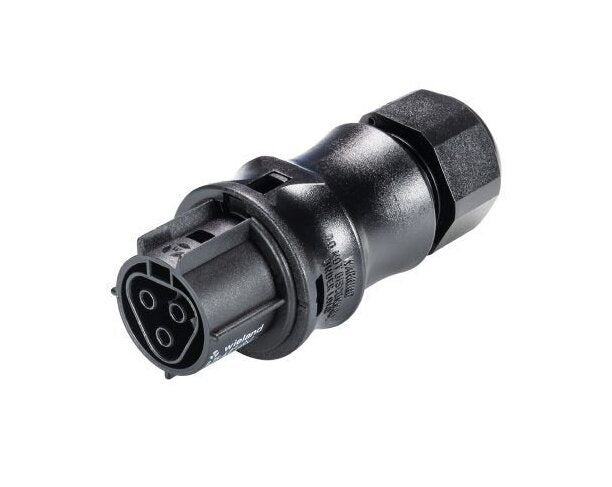

The Wieland RST20I3S B1 ZR1 SW Circular Connector is a reliable 3-pole female connector designed for outdoor use. With a screw connection and a 250V application with PE, this connector is ideal for outdoor electrical applications requiring a 20A current. It features a black coding color for easy identification and a black housing for durability. Rated IP66, IP68, and IP69, this connector offers robust protection against environmental factors. Compliant with RoHS and REACH-SVHC standards, it ensures safety and environmental responsibility in your electrical installations.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10 mm
Connection Data Maximum Fine Stranded Connection Cross Section
6 mm²
Connection Data Maximum Solid Connection Cross Section
6 mm² | 10 AWG
Connection Data Maximum Stranded Connection Cross Section
6 mm² | 10 AWG
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 16 AWG
Connection Data Minimum Stranded Connection Cross Section
0.75 mm² | 16 AWG
Connection Data Sheath Strip Length
26.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
34.6 mm
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.29 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
