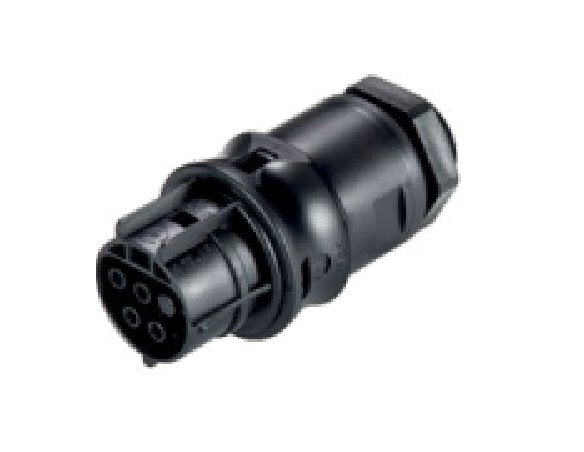

Wieland RST20I4 Black Female Device Connector
Wieland RST20I4 Black Female Device Connector
SKU:CIR-4619ca
Reliable Wieland RST20I4 Black Female Device Connector for outdoor use, featuring screw connection and IP69 protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland RST20I4 Black Female Device Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland RST20I4 Black Female Device Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RST20I4 Black Female Device Connector is a high-quality outdoor-rated circular electrical connector designed for demanding applications. Featuring a screw connection and a straight angle plug design, this connector ensures secure and reliable connections. With a black color coding and contact carrier, this connector is easy to identify and install. It meets stringent technical standards, including a rated voltage of 250-600V, rated current of 20A, and IP69 protection according to IEC standards. Suitable for wire sizes ranging from 0.75 to 4 mm² (IEC) and 18 to 14 AWG (cULus), this connector is versatile and durable for various electrical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Model
RST20I4 Female
General Number Of Poles
4
Note Note
Technical details are subject to change
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Thread Size
M20
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
